LAN8671C1-E/U3B
IC TXRX FULL/HALF 1/1 24VQFNManufacturer: Microchip Technology
Categories: Drivers, Receivers, Transceivers
Quality Control: Learn More

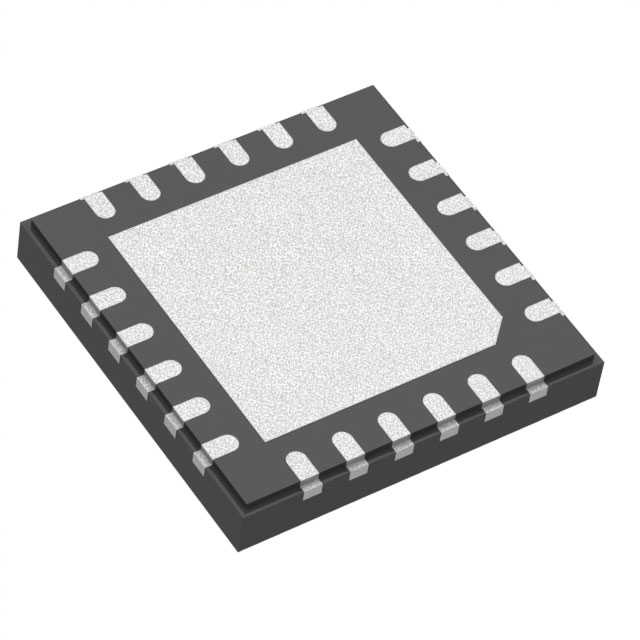

Microchip Technology LAN8671C1-E-U3B is a 10Mbps Ethernet transceiver featuring a 1 transmit and 1 receive channel. This component supports both full and half duplex communication modes, essential for robust network connectivity. Designed for surface mount applications, it utilizes a 24-VQFN (4x4) exposed pad package with wettable flanks for enhanced solder joint reliability. The device operates over an extended temperature range of -40°C to 125°C and requires a supply voltage between 3.135V and 3.465V. With 230mV of receiver hysteresis, it ensures signal integrity in demanding environments. The LAN8671C1-E-U3B is commonly employed in industrial automation, automotive systems, and communication infrastructure where reliable Ethernet connectivity is critical.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 24-VFQFN Exposed Pad |
| Mounting Type | Surface Mount, Wettable Flank |
| Type | Transceiver |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Voltage - Supply | 3.135V ~ 3.465V |
| Number of Drivers/Receivers | 1/1 |
| Data Rate | 10Mbps |
| Protocol | Ethernet |
| Supplier Device Package | 24-VQFN (4x4) |
| Receiver Hysteresis | 230 mV |
| Duplex | Full, Half |
