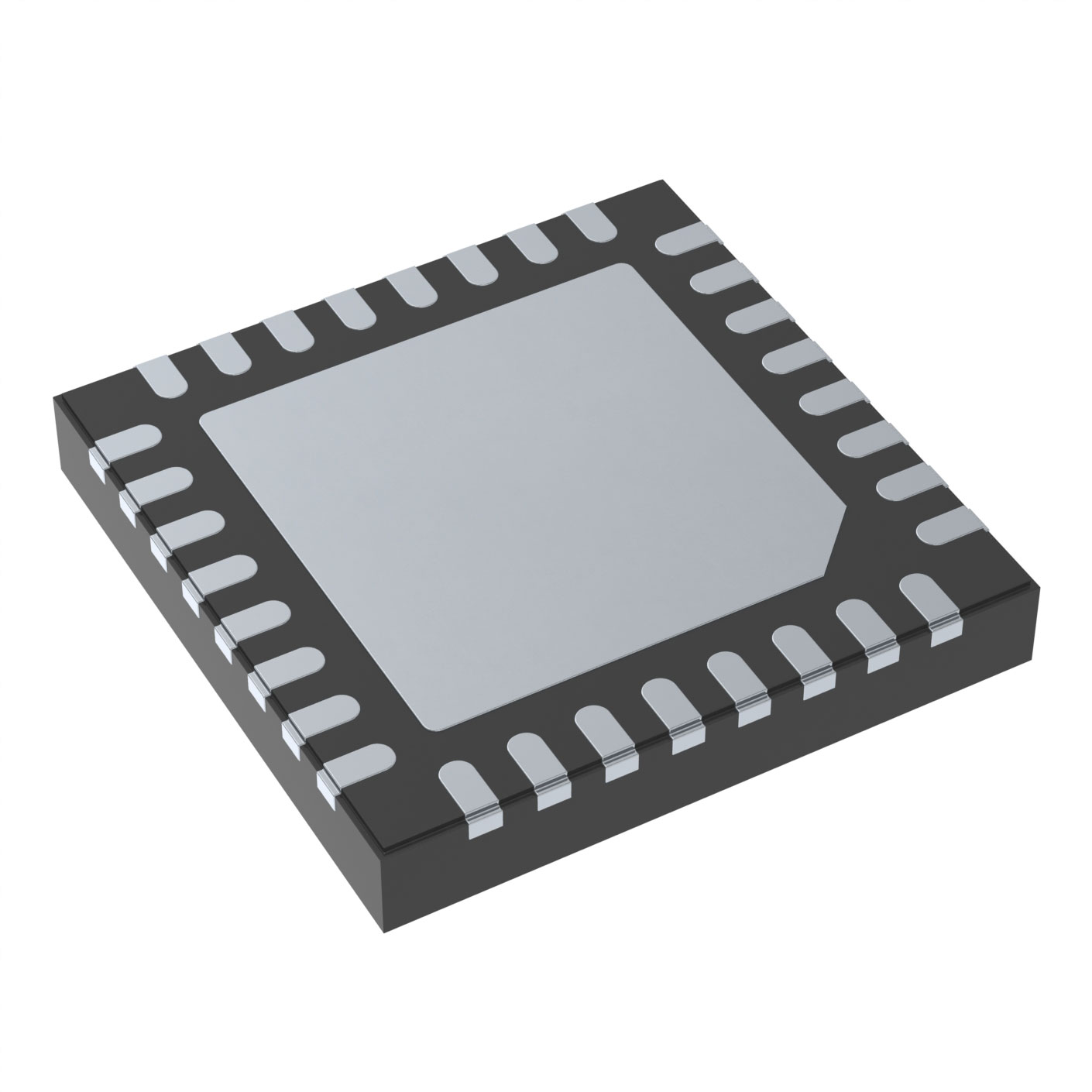

LAN8670C1-E/LMX
IC TXRX FULL/HALF 1/1 32VQFNManufacturer: Microchip Technology
Categories: Drivers, Receivers, Transceivers
Quality Control: Learn More
Microchip Technology's LAN8670C1-E-LMX is a single-port Ethernet transceiver designed for robust communication. This component supports both full-duplex and half-duplex operation at 10Mbps data rates, fulfilling the requirements of IEEE 802.3 standards. It features a 1/1 driver/receiver configuration and is housed in a compact 32-VQFN (5x5) package with wettable flank surface mount technology for enhanced solder joint inspection. The operating temperature range of -40°C to 125°C (TA) makes it suitable for demanding industrial and automotive applications. Key electrical characteristics include a supply voltage range of 3.135V to 3.465V and receiver hysteresis of 230 mV. This device is commonly deployed in industrial automation, automotive networking, and communication infrastructure where reliable Ethernet connectivity is critical.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 32-VFQFN Exposed Pad |
| Mounting Type | Surface Mount, Wettable Flank |
| Type | Transceiver |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Voltage - Supply | 3.135V ~ 3.465V |
| Number of Drivers/Receivers | 1/1 |
| Data Rate | 10Mbps |
| Protocol | Ethernet |
| Supplier Device Package | 32-VQFN (5x5) |
| Receiver Hysteresis | 230 mV |
| Duplex | Full, Half |
