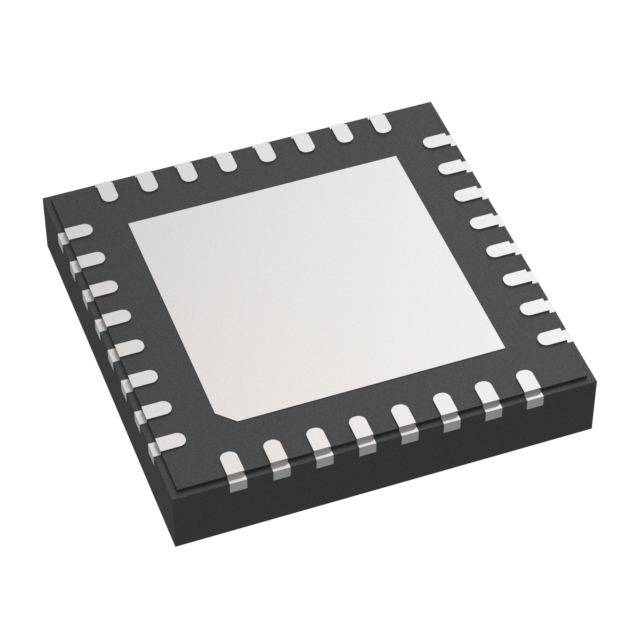

LAN8670B1-E/LMX
IC TXRX FULL/HALF 1/1 32VQFNManufacturer: Microchip Technology
Categories: Drivers, Receivers, Transceivers
Quality Control: Learn More
Microchip Technology LAN8670B1-E-LMX is a 1/1 Ethernet transceiver supporting both full and half-duplex operation. This AEC-Q100 qualified component features a 32-VQFN (5x5) package with wettable flanks for enhanced surface mount assembly. Designed for demanding automotive applications, it operates reliably across an extended temperature range of -40°C to 125°C. The device supports a 10Mbps data rate and requires a supply voltage between 3.135V and 3.465V. With 230 mV of receiver hysteresis, it offers robust signal integrity. The LAN8670B1-E-LMX is suitable for various automotive networking solutions.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 32-VFQFN Exposed Pad |
| Mounting Type | Surface Mount, Wettable Flank |
| Type | Transceiver |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Voltage - Supply | 3.135V ~ 3.465V |
| Number of Drivers/Receivers | 1/1 |
| Data Rate | 10Mbps |
| Protocol | Ethernet |
| Supplier Device Package | 32-VQFN (5x5) |
| Receiver Hysteresis | 230 mV |
| Duplex | Full, Half |
| Grade | Automotive |
| Qualification | AEC-Q100 |
