JANTXV1N7037CCU1

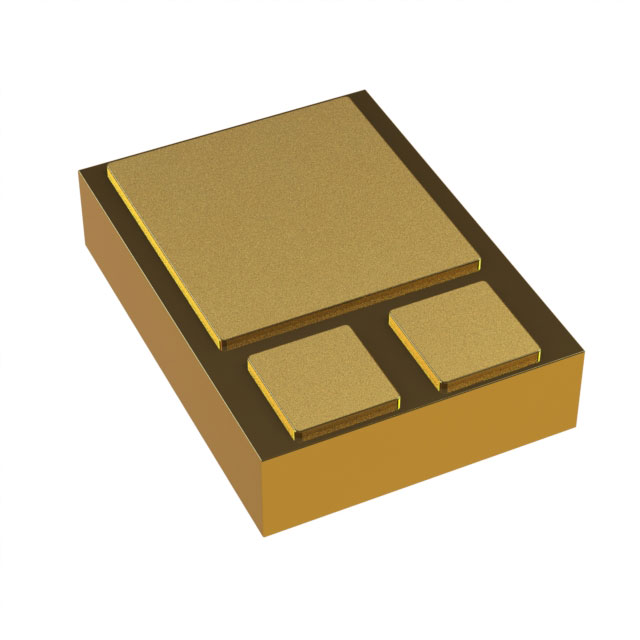

DIODE ARRAY SCHOTTKY 100V 35A U1Manufacturer: Microchip Technology
Categories: Diode Arrays
Quality Control: Learn More
Microchip Technology JANTXV1N7037CCU1 is a Schottky diode array featuring a common cathode configuration. This component offers a reverse voltage rating of 100V and a significant forward current capability of 35A per diode. The array exhibits a maximum forward voltage drop of 1.22V at the rated 35A. Reverse leakage is specified at 500 µA at 100V. Designed for surface mounting, it utilizes a 3-SMD, No Lead package (U1). The operating junction temperature range is -65°C to 150°C. This diode array is suitable for applications requiring high current rectification and fast switching speeds, commonly found in power supply circuits, automotive electronics, and industrial control systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 35 week(s)Product Status: ActivePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 3-SMD, No Lead |
| Mounting Type | Surface Mount |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Technology | Schottky |
| Diode Configuration | 1 Pair Common Cathode |
| Current - Average Rectified (Io) (per Diode) | 35A |
| Supplier Device Package | U1 (SMD-1) |
| Operating Temperature - Junction | -65°C ~ 150°C |
| Voltage - DC Reverse (Vr) (Max) | 100 V |
| Voltage - Forward (Vf) (Max) @ If | 1.22 V @ 35 A |
| Current - Reverse Leakage @ Vr | 500 µA @ 100 V |
