JANTXV1N4148UBCD
DIODE ARRAY GP 75V 1A UBCManufacturer: Microchip Technology
Categories: Diode Arrays
Quality Control: Learn More

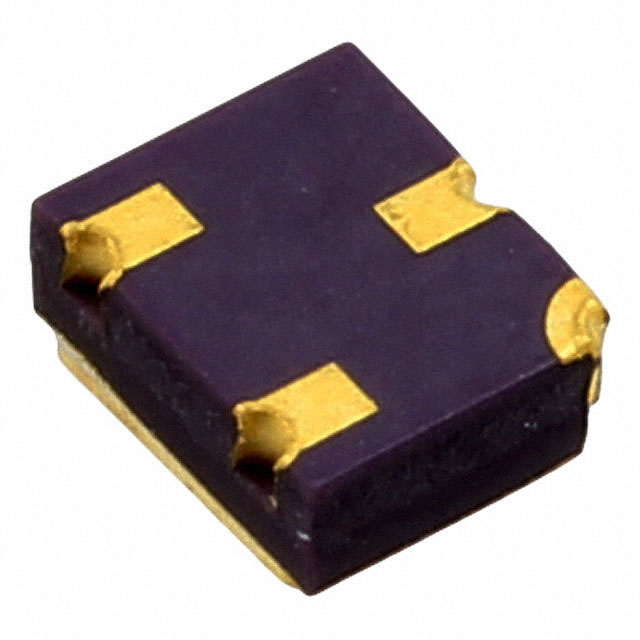

Microchip Technology JANTXV1N4148UBCD is a military-grade diode array featuring a single pair of diodes in a series configuration. This surface-mount component, housed in a 3-SMD, No Lead package, offers a maximum reverse voltage of 75V and an average rectified current of 1A per diode. It exhibits a low reverse leakage of 25 nA at 20V and a fast reverse recovery time of 5 ns. The forward voltage drop is 800 mV at 100 mA. This component is qualified to MIL-PRF-19500/116 and operates across a temperature range of -65°C to 200°C. Applications include high-reliability systems in aerospace and defense.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: 35 week(s)Product Status: ActivePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 3-SMD, No Lead |
| Mounting Type | Surface Mount |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 5 ns |
| Technology | Standard |
| Diode Configuration | 1 Pair Series Connection |
| Current - Average Rectified (Io) (per Diode) | 1A |
| Supplier Device Package | UBC |
| Operating Temperature - Junction | -65°C ~ 200°C |
| Grade | Military |
| Voltage - DC Reverse (Vr) (Max) | 75 V |
| Voltage - Forward (Vf) (Max) @ If | 800 mV @ 100 mA |
| Current - Reverse Leakage @ Vr | 25 nA @ 20 V |
| Qualification | MIL-PRF-19500/116 |
