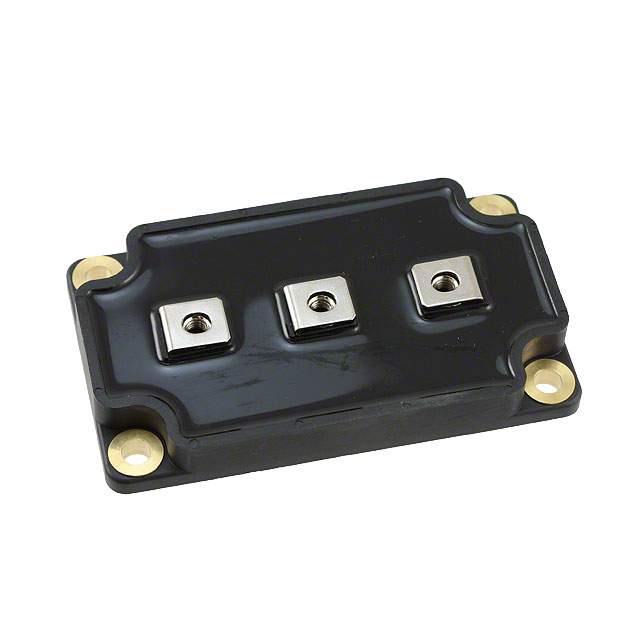

APTDF400KK170G
DIODE MODULE GP 1700V 480A SP6Manufacturer: Microchip Technology
Categories: Diode Arrays
Quality Control: Learn More
Microchip Technology APTDF400KK170G is a high-performance diode module featuring a common cathode configuration. This component offers a robust 1700 V reverse voltage capability and a continuous average rectified current of 480 A per diode. Designed for demanding applications, it exhibits a forward voltage drop of 2.5 V at 400 A and a reverse leakage current of 750 µA at its maximum reverse voltage. The module boasts a standard recovery speed with a reverse recovery time of 572 ns. Its LP4 package is designed for chassis mounting, ensuring effective thermal management. This diode array is suitable for use in power conversion systems, industrial motor drives, and renewable energy applications.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 27 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | LP4 |
| Mounting Type | Chassis Mount |
| Speed | Standard Recovery >500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 572 ns |
| Technology | Standard |
| Diode Configuration | 1 Pair Common Cathode |
| Current - Average Rectified (Io) (per Diode) | 480A |
| Supplier Device Package | SP6 |
| Voltage - DC Reverse (Vr) (Max) | 1700 V |
| Voltage - Forward (Vf) (Max) @ If | 2.5 V @ 400 A |
| Current - Reverse Leakage @ Vr | 750 µA @ 1700 V |
Request a Quote
