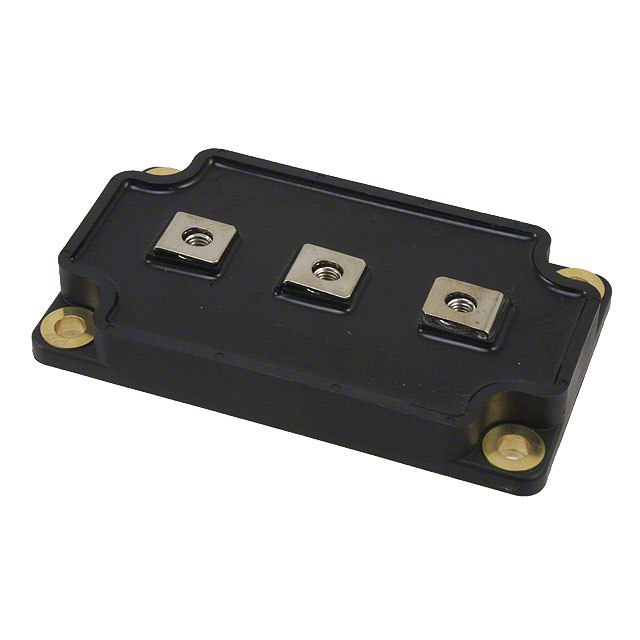

APTDF400AK170G
DIODE MODULE GP 1700V 480A SP6Manufacturer: Microchip Technology
Categories: Diode Arrays
Quality Control: Learn More
Microchip Technology APTDF400AK170G is a high-power diode module featuring a single pair of diodes connected in series. This component offers a maximum DC reverse voltage (Vr) of 1700 V and a substantial average rectified current (Io) per diode of 480 A. The forward voltage drop (Vf) is rated at a maximum of 2.5 V at 400 A. Reverse leakage current is specified at 750 µA at 1700 V. The module utilizes standard recovery technology with a reverse recovery time (trr) of 572 ns. Designed for chassis mounting within an LP4 package, this diode array is suitable for demanding applications across various industries including industrial motor control and power generation.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 27 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | LP4 |
| Mounting Type | Chassis Mount |
| Speed | Standard Recovery >500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 572 ns |
| Technology | Standard |
| Diode Configuration | 1 Pair Series Connection |
| Current - Average Rectified (Io) (per Diode) | 480A |
| Supplier Device Package | SP6 |
| Voltage - DC Reverse (Vr) (Max) | 1700 V |
| Voltage - Forward (Vf) (Max) @ If | 2.5 V @ 400 A |
| Current - Reverse Leakage @ Vr | 750 µA @ 1700 V |
