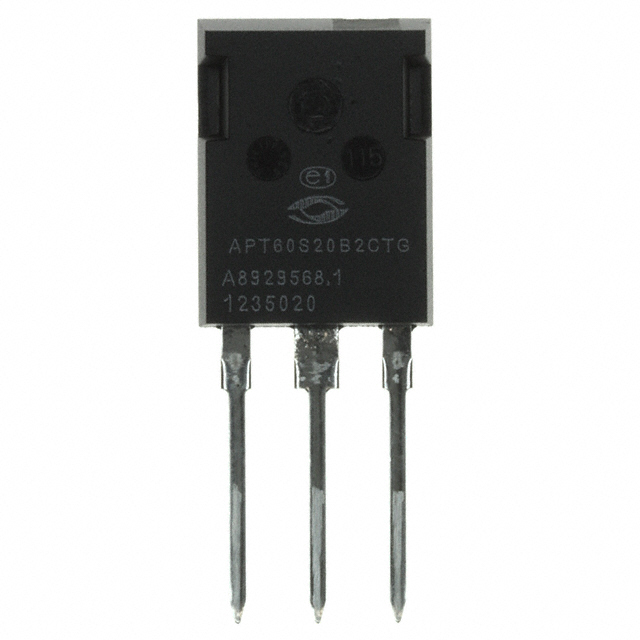

APT60S20B2CTG
DIODE ARRAY SCHOTTKY 200V TMAXManufacturer: Microchip Technology
Categories: Diode Arrays
Quality Control: Learn More
Diode Array 1 Pair Common Cathode 200 V 75A Through Hole TO-247-3 Variant
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 22 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-247-3 Variant |
| Mounting Type | Through Hole |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 55 ns |
| Technology | Schottky |
| Diode Configuration | 1 Pair Common Cathode |
| Current - Average Rectified (Io) (per Diode) | 75A |
| Supplier Device Package | T-MAX™ [B2] |
| Operating Temperature - Junction | -55°C ~ 150°C |
| Voltage - DC Reverse (Vr) (Max) | 200 V |
| Voltage - Forward (Vf) (Max) @ If | 900 mV @ 60 A |
| Current - Reverse Leakage @ Vr | 1 mA @ 200 V |
