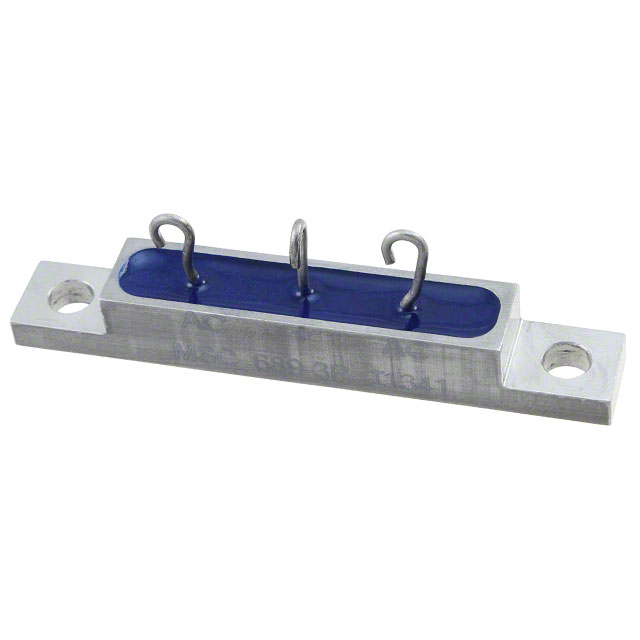

689-3P

DIODE MODULE GP 300V 15A ND

Manufacturer: Microchip Technology

Categories: Diode Arrays

Quality Control: Learn More

Microchip Technology's 689-3P is a diode module featuring a common cathode configuration. This component offers a maximum DC reverse voltage of 300V and an average rectified current of 15A per diode. The forward voltage drop is a maximum of 1.2V at 10A, with a reverse leakage current of 10 µA at 300V. Designed for efficient operation, it exhibits a fast recovery time of 500 ns, categorized under speeds greater than 200mA (Io). The module is chassis mounted for robust thermal management and operates at a junction temperature up to 150°C. This device is commonly utilized in industrial power supplies and motor control applications. The product is supplied in bulk packaging.

Additional Information

Series: -RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: BulkDatasheet:
Technical Details:
PackagingBulk
Package / CaseND, Module
Mounting TypeChassis Mount
SpeedFast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)500 ns
TechnologyStandard
Diode Configuration1 Pair Common Cathode
Current - Average Rectified (Io) (per Diode)15A
Supplier Device PackageND
Operating Temperature - Junction150°C (Max)
Voltage - DC Reverse (Vr) (Max)300 V
Voltage - Forward (Vf) (Max) @ If1.2 V @ 10 A
Current - Reverse Leakage @ Vr10 µA @ 300 V
