1N6659
DIODE ARRAY GP 200V 15A TO254AAManufacturer: Microchip Technology
Categories: Diode Arrays
Quality Control: Learn More

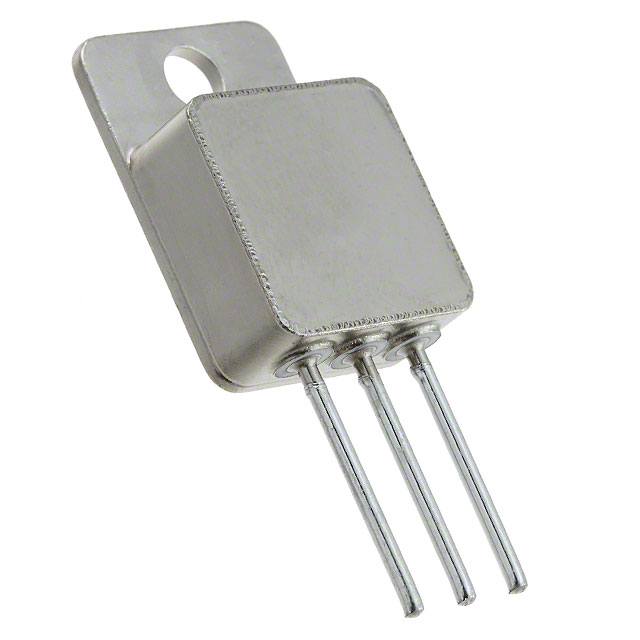

Microchip Technology's 1N6659 is a diode array featuring a common anode configuration with two diodes. It offers a maximum DC reverse voltage of 200 V and an average rectified current of 15 A per diode. The forward voltage (Vf) is specified at 1.2 V at 20 A, with a reverse leakage of 10 µA at 200 V. This component exhibits fast recovery characteristics with a trr of 35 ns. It is housed in a TO-254AA package with straight leads, suitable for through-hole mounting. The 1N6659 is utilized in power supply rectification and high-speed switching applications within industrial and automotive sectors.
Additional Information
Series: -RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | TO-254-3, TO-254AA (Straight Leads) |
| Mounting Type | Through Hole |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 35 ns |
| Technology | Standard |
| Diode Configuration | 1 Pair Common Anode |
| Current - Average Rectified (Io) (per Diode) | 15A |
| Supplier Device Package | TO-254AA |
| Operating Temperature - Junction | - |
| Voltage - DC Reverse (Vr) (Max) | 200 V |
| Voltage - Forward (Vf) (Max) @ If | 1.2 V @ 20 A |
| Current - Reverse Leakage @ Vr | 10 µA @ 200 V |
