1N4148UBD
DIODE ARRAY GP 75V 200MA UBManufacturer: Microchip Technology
Categories: Diode Arrays
Quality Control: Learn More
Microchip Technology's 1N4148UBD is a general-purpose diode array featuring a single pair of diodes connected in series. This component offers a reverse voltage rating of 75V and an average rectified current of 200mA per diode. Designed for surface mounting, it is housed in a 3-SMD, No Lead package. The device exhibits a forward voltage of 1.2V at 100mA and a low reverse leakage current of 500 nA at 75V. Its fast switching speed, characterized by a reverse recovery time of 5 ns, makes it suitable for small-signal applications. This diode array is commonly utilized in automotive, industrial, and consumer electronics for switching and signal conditioning applications. The 1N4148UBD is supplied in bulk packaging.
Additional Information
Series: -RoHS Status: RoHS non-compliantManufacturer Lead Time: 35 week(s)Product Status: ActivePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |

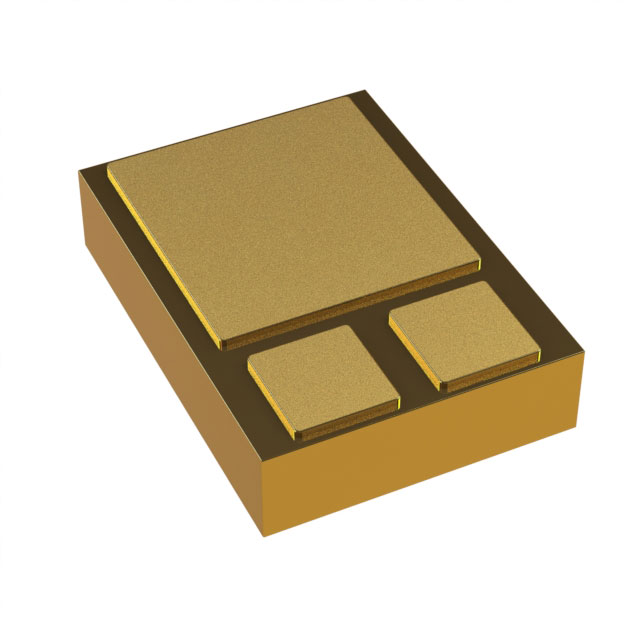

| Package / Case | 3-SMD, No Lead |
| Mounting Type | Surface Mount |
| Speed | Small Signal =< 200mA (Io), Any Speed |
| Reverse Recovery Time (trr) | 5 ns |
| Technology | Standard |
| Diode Configuration | 1 Pair Series Connection |
| Current - Average Rectified (Io) (per Diode) | 200mA |
| Supplier Device Package | UB |
| Operating Temperature - Junction | -65°C ~ 200°C |
| Voltage - DC Reverse (Vr) (Max) | 75 V |
| Voltage - Forward (Vf) (Max) @ If | 1.2 V @ 100 mA |
| Current - Reverse Leakage @ Vr | 500 nA @ 75 V |
