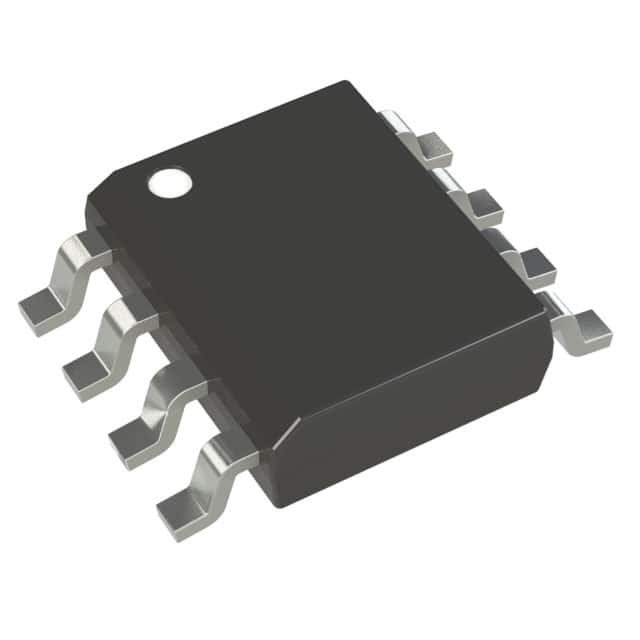

TC1321EOATR
IC DAC 10BIT V-OUT 8SOICManufacturer: Microchip Technology
Categories: Digital to Analog Converters (DAC)
Quality Control: Learn More
10 Bit Digital to Analog Converter 1 8-SOIC
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 5 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-SOIC (0.154"", 3.90mm Width) |
| Output Type | Voltage - Buffered |
| Mounting Type | Surface Mount |
| Number of Bits | 10 |
| Data Interface | I2C |
| Reference Type | External |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 2.7V ~ 5.5V |
| Voltage - Supply, Digital | 2.7V ~ 5.5V |
| Settling Time | 10µs (Typ) |
| Supplier Device Package | 8-SOIC |
| Architecture | Current Steering |
| Number of D/A Converters | 1 |
| INL/DNL (LSB) | ±4 (Max), ±2 (Max) |
| Differential Output | No |
| Programmable | Not Verified |
Request a Quote
