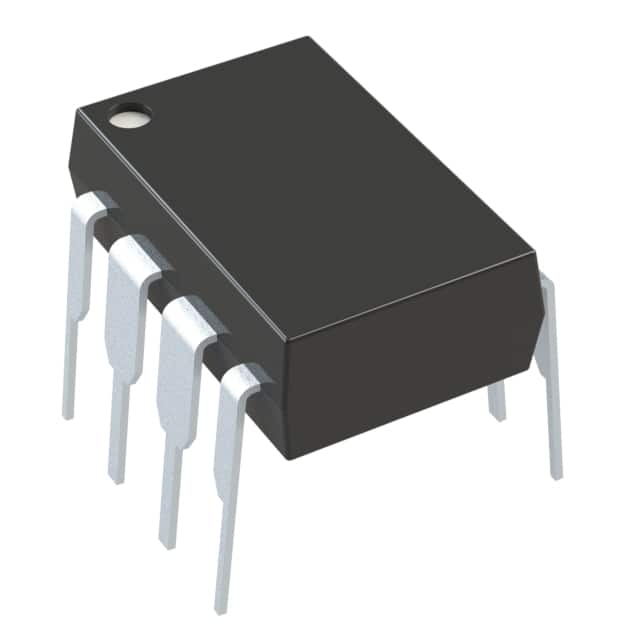

TC962EPA
IC REG CHARGE PUMP INV 80MA 8DIPManufacturer: Microchip Technology
Categories: DC DC Switching Regulators
Quality Control: Learn More
Charge Pump Switching Regulator IC Positive or Negative Fixed -Vin, 2Vin 1 Output 80mA 8-DIP (0.300"", 7.62mm)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 6 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 8-DIP (0.300"", 7.62mm) |
| Output Type | Fixed |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Function | Ratiometric |
| Current - Output | 80mA |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Output Configuration | Positive or Negative |
| Frequency - Switching | 12kHz ~ 24kHz |
| Voltage - Input (Max) | 18V |
| Topology | Charge Pump |
| Supplier Device Package | 8-PDIP |
| Synchronous Rectifier | No |
| Voltage - Output (Max) | - |
| Voltage - Input (Min) | 3V |
| Voltage - Output (Min/Fixed) | -Vin, 2Vin |
