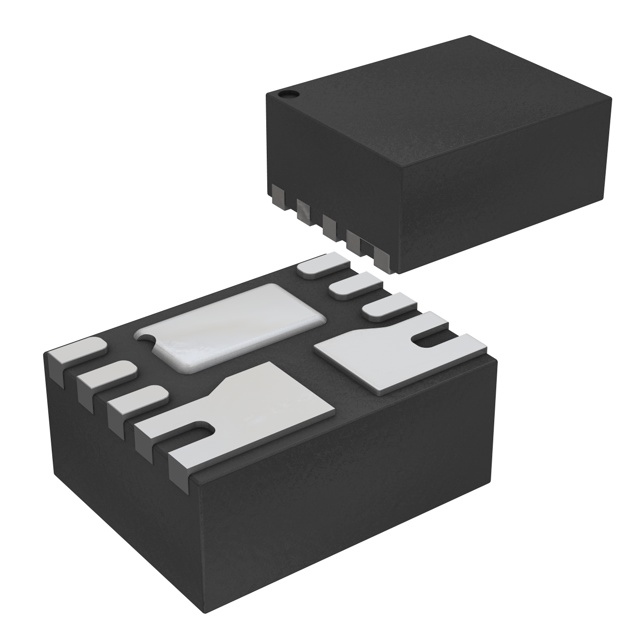

MIC33030-JYHJ-TR
IC REG BUCK 2.5V 400MA 10MLFManufacturer: Microchip Technology
Categories: DC DC Switching Regulators
Quality Control: Learn More
Microchip Technology's MIC33030-JYHJ-TR is a HyperLight Load® series buck switching regulator. This fixed 2.5V output device delivers 400mA continuous current and operates with an 8MHz switching frequency. Featuring a synchronous rectifier, it is designed for efficient step-down conversion. The regulator supports an input voltage range of 2.7V to 5.5V. Packaged in a 10-MLF® (2.5x2) surface mount configuration, this component is supplied on tape and reel. Its compact footprint and high efficiency make it suitable for portable electronics, battery-powered devices, and point-of-load applications where space and power consumption are critical. The operating temperature range is -40°C to 125°C (TJ).
Additional Information
Series: HyperLight Load®RoHS Status: ROHS3 CompliantManufacturer Lead Time: 14 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 10-PowerTFDFN, 10-MLF® |
| Output Type | Fixed |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Function | Step-Down |
| Current - Output | 400mA |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Output Configuration | Positive |
| Frequency - Switching | 8MHz |
| Voltage - Input (Max) | 5.5V |
| Topology | Buck |
| Supplier Device Package | 10-MLF® (2.5x2) |
| Synchronous Rectifier | Yes |
| Voltage - Output (Max) | - |
| Voltage - Input (Min) | 2.7V |
| Voltage - Output (Min/Fixed) | 2.5V |
