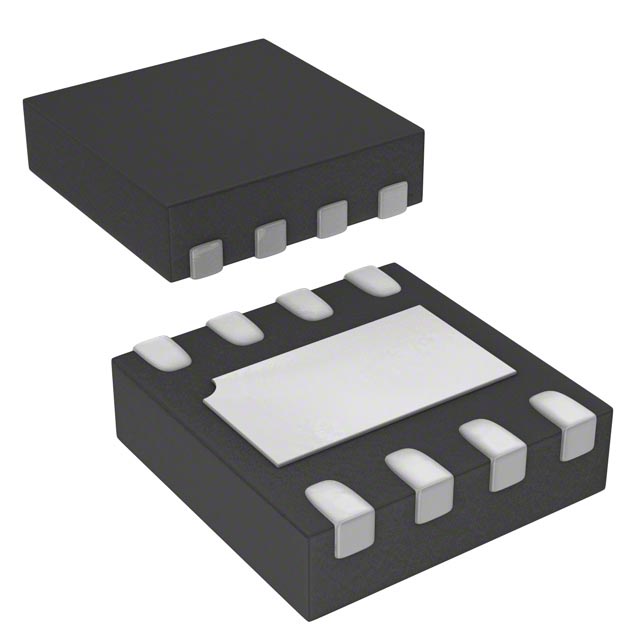

MIC2875-AYMT-T5
IC REG BOOST ADJ 3.8A 8TDFNManufacturer: Microchip Technology
Categories: DC DC Switching Regulators
Quality Control: Learn More
Microchip Technology's MIC2875-AYMT-T5 is a high-efficiency, adjustable output boost switching regulator designed for demanding applications. This device offers a 2.5V to 5.5V output voltage range from a 2.5V to 5.5V input, with a maximum output current capability of 3.8A (switch). Operating at a fixed 2MHz switching frequency, the MIC2875-AYMT-T5 utilizes a non-synchronous boost topology and is housed in an 8-TDFN (2x2) exposed pad package for effective thermal management. Its robust design makes it suitable for use in portable electronics and power management systems. The component is supplied on tape and reel.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-UFDFN Exposed Pad |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Function | Step-Up |
| Current - Output | 3.8A (Switch) |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Output Configuration | Positive |
| Frequency - Switching | 2MHz |
| Voltage - Input (Max) | 5.5V |
| Topology | Boost |
| Supplier Device Package | 8-TDFN (2x2) |
| Synchronous Rectifier | No |
| Voltage - Output (Max) | 5.5V |
| Voltage - Input (Min) | 2.5V |
| Voltage - Output (Min/Fixed) | 2.5V |
Request a Quote
