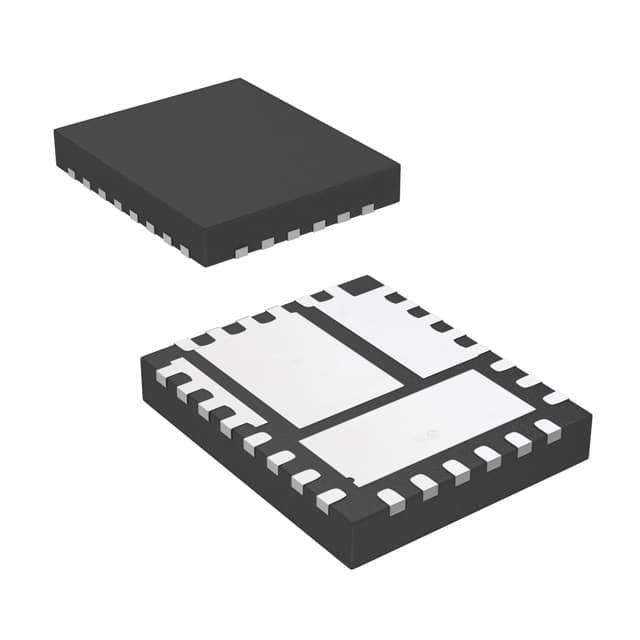

MIC261203-ZYJL-TR
IC REG BUCK ADJ 12A 28QFNManufacturer: Microchip Technology
Categories: DC DC Switching Regulators
Quality Control: Learn More
Microchip Technology's MIC261203-ZYJL-TR is a high-performance adjustable buck switching regulator designed for demanding power conversion applications. This component delivers a robust 12A output current, supporting an adjustable output voltage ranging from 0.8V to 5.5V. Featuring a 600kHz switching frequency, it utilizes an efficient buck topology with a synchronous rectifier, minimizing power loss and heat dissipation. The MIC261203-ZYJL-TR operates from an input voltage range of 4.5V to 28V, making it suitable for a wide array of power supply designs. Packaged in a compact 28-QFN (5x6) with a 28-PowerVQFN case, it is designed for surface mounting. This regulator is ideal for use in industrial automation, automotive systems, and telecommunications infrastructure where reliable and efficient DC-DC conversion is critical. The component is supplied in tape and reel packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 52 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 28-PowerVQFN |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Function | Step-Down |
| Current - Output | 12A |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Output Configuration | Positive |
| Frequency - Switching | 600kHz |
| Voltage - Input (Max) | 28V |
| Topology | Buck |
| Supplier Device Package | 28-QFN (5x6) |
| Synchronous Rectifier | Yes |
| Voltage - Output (Max) | 5.5V |
| Voltage - Input (Min) | 4.5V |
| Voltage - Output (Min/Fixed) | 0.8V |
