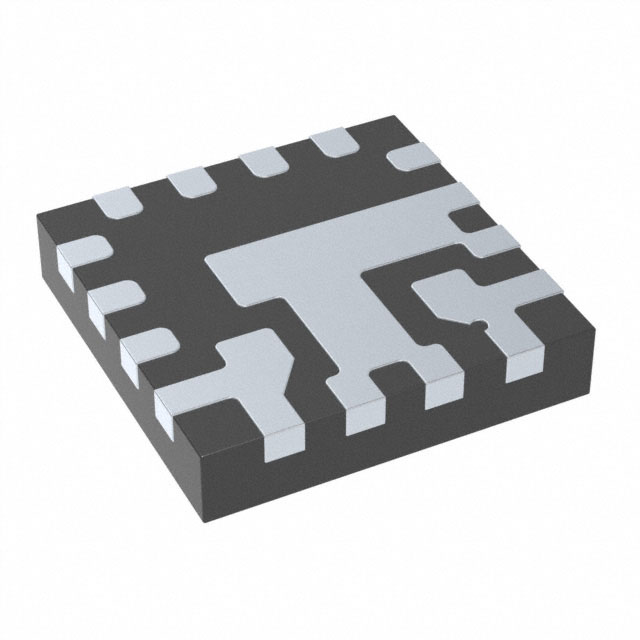

MIC23356YFT-TR
IC REG BUCK PROG 0.6V 16FTQFNManufacturer: Microchip Technology
Categories: DC DC Switching Regulators
Quality Control: Learn More
Microchip Technology's MIC23356YFT-TR is a HyperLight Load® synchronous buck switching regulator designed for efficient power conversion. This device offers a programmable output voltage ranging from 0.6V up to 1.28V, capable of delivering up to 3A of output current. Featuring dual switching frequency options of 1.6MHz and 2.2MHz, it supports compact solution sizes. The regulator operates from an input voltage range of 2.4V to 5.5V and is packaged in a 16-FTQFN (2.5x2.5) surface-mount configuration, supplied on tape and reel (TR). Its positive output configuration and integrated synchronous rectifier contribute to high efficiency. This component is suitable for applications in consumer electronics, industrial automation, and portable devices.
Additional Information
Series: HyperLight Load®RoHS Status: ROHS3 CompliantManufacturer Lead Time: 52 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 16-PowerUFQFN |
| Output Type | Programmable |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Function | Step-Down |
| Current - Output | 3A |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Output Configuration | Positive |
| Frequency - Switching | 1.6MHz, 2.2MHz |
| Voltage - Input (Max) | 5.5V |
| Topology | Buck |
| Supplier Device Package | 16-FTQFN (2.5x2.5) |
| Synchronous Rectifier | Yes |
| Voltage - Output (Max) | 1.28V |
| Voltage - Input (Min) | 2.4V |
| Voltage - Output (Min/Fixed) | 0.6V |
