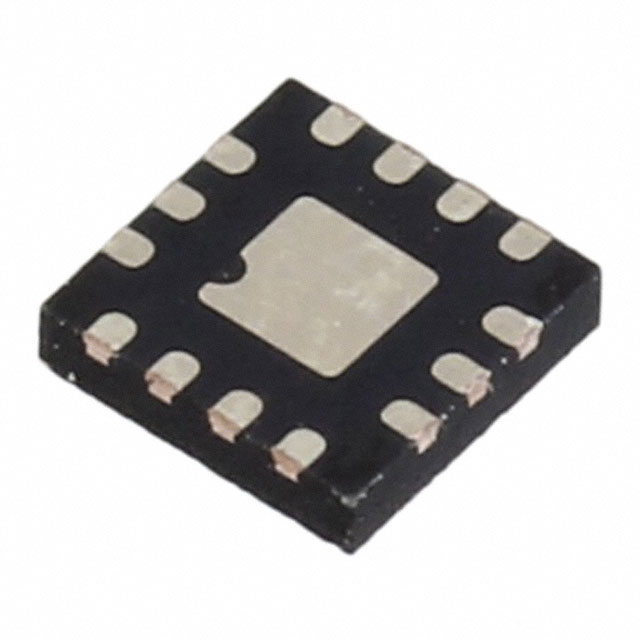

MIC23099YFT-T5
IC REG BUCK BST ADJ DL 14FTQFNManufacturer: Microchip Technology
Categories: DC DC Switching Regulators
Quality Control: Learn More
Buck, Boost Switching Regulator IC Positive Adjustable 1V, 1.8V 2 Output 30mA, 1A (Switch) 14-UFQFN Exposed Pad
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 14-UFQFN Exposed Pad |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Number of Outputs | 2 |
| Function | Step-Up, Step-Down |
| Current - Output | 30mA, 1A (Switch) |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Output Configuration | Positive |
| Frequency - Switching | 1MHz, 80kHz |
| Voltage - Input (Max) | 1.6V |
| Topology | Buck, Boost |
| Supplier Device Package | 14-FTQFN (2.5x2.5) |
| Synchronous Rectifier | Yes |
| Voltage - Output (Max) | 1.6V, 3.3V |
| Voltage - Input (Min) | 0.85V |
| Voltage - Output (Min/Fixed) | 1V, 1.8V |
