MIC23030-FYMT-TR
IC REG BUCK 1.5V 400MA 6TMLFManufacturer: Microchip Technology
Categories: DC DC Switching Regulators
Quality Control: Learn More
The Microchip Technology MIC23030-FYMT-TR is a HyperLight Load® series, 400mA buck switching regulator. This IC offers a fixed 1.5V positive output voltage and operates with a high 8MHz switching frequency, enabling efficient power conversion. Its synchronous buck topology and 400mA output current capability make it suitable for a range of applications, including portable electronics, battery-powered devices, and IoT systems. The device features a compact 6-TMLF® (1.6x1.6) package, designed for surface mounting, and is supplied in tape and reel packaging. It operates within an input voltage range of 2.7V to 5.5V and a junction temperature range of -40°C to 125°C.
Additional Information
Series: HyperLight Load®RoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 6-UFDFN Exposed Pad, 6-TMLF® |
| Output Type | Fixed |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Function | Step-Down |
| Current - Output | 400mA |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Output Configuration | Positive |
| Frequency - Switching | 8MHz |
| Voltage - Input (Max) | 5.5V |
| Topology | Buck |
| Supplier Device Package | 6-TMLF® (1.6x1.6) |
| Synchronous Rectifier | Yes |
| Voltage - Output (Max) | - |
| Voltage - Input (Min) | 2.7V |
| Voltage - Output (Min/Fixed) | 1.5V |
Request a Quote
Clients Also Buy
MIC33030-AYHJ-TR
IC REG BUCK ADJ 400MA 10MLF
MIC33050-AYHL-TR
IC REG BUCK ADJ 600MA 12MLF

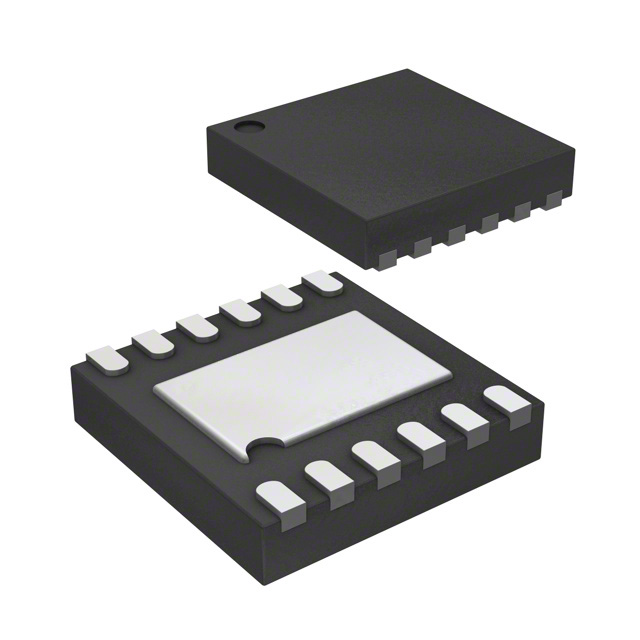

MIC23250-AAYMT-TR
