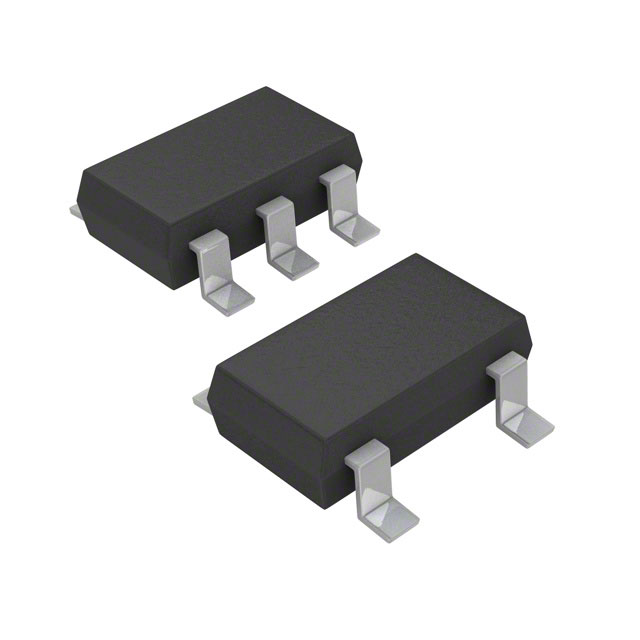

MIC2295BD5
IC REG BOOST ADJ 1.2A TSOT23-5Manufacturer: Microchip Technology
Categories: DC DC Switching Regulators
Quality Control: Learn More
The Microchip Technology MIC2295BD5 is a versatile boost switching regulator designed for efficient DC-DC conversion. This positive adjustable output device operates with an input voltage range of 2.5V to 10V and can deliver an output voltage up to 34V. Featuring a fixed switching frequency of 1.2MHz, it supports a maximum output current of 1.2A (switch). The MIC2295BD5 utilizes a non-synchronous boost topology and is available in a compact TSOT-23-5 package, suitable for surface mount applications. Its adjustable output capability makes it a strong candidate for power management solutions across various industries, including consumer electronics and industrial automation. The operating temperature range is -40°C to 125°C (TJ).
Additional Information
Series: -RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | SOT-23-5 Thin, TSOT-23-5 |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Function | Step-Up |
| Current - Output | 1.2A (Switch) |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Output Configuration | Positive |
| Frequency - Switching | 1.2MHz |
| Voltage - Input (Max) | 10V |
| Topology | Boost |
| Supplier Device Package | TSOT-23-5 |
| Synchronous Rectifier | No |
| Voltage - Output (Max) | 34V (Switch) |
| Voltage - Input (Min) | 2.5V |
| Voltage - Output (Min/Fixed) | 2.5V |
