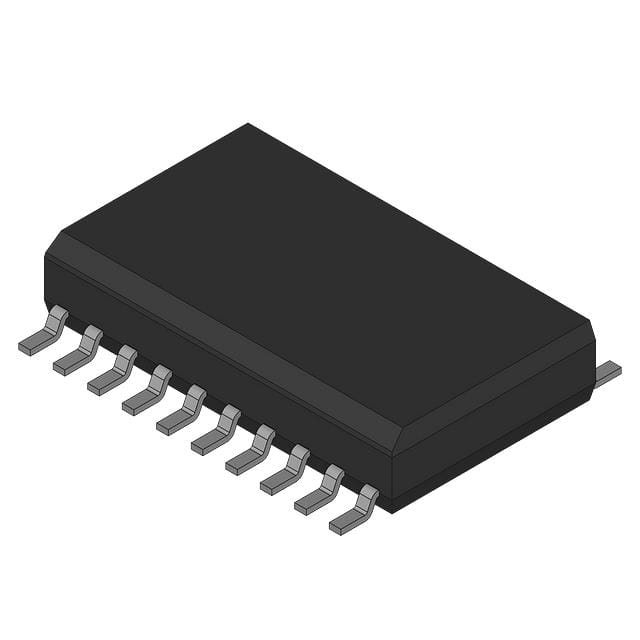

MIC2177BWM
IC REG BUCK ADJ 2.5A 20SOICManufacturer: Microchip Technology
Categories: DC DC Switching Regulators
Quality Control: Learn More
The Microchip Technology MIC2177BWM is a versatile buck switching regulator IC designed for efficient power conversion. This adjustable positive output regulator provides up to 2.5A of output current with a typical switching frequency of 200kHz. It operates from an input voltage range of 4.5V to 16.5V, offering a minimum adjustable output voltage of 1.245V and a maximum output voltage matching the input. The device features a non-synchronous buck topology and is housed in a 20-SOIC (0.295", 7.50mm Width) package suitable for surface mount applications. Operating within a junction temperature range of -40°C to 125°C, the MIC2177BWM is well-suited for applications in consumer electronics, industrial control systems, and networking equipment.
Additional Information
Series: -RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 20-SOIC (0.295"", 7.50mm Width) |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Function | Step-Down |
| Current - Output | 2.5A |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Output Configuration | Positive |
| Frequency - Switching | 200kHz |
| Voltage - Input (Max) | 16.5V |
| Topology | Buck |
| Supplier Device Package | 20-SOIC |
| Synchronous Rectifier | No |
| Voltage - Output (Max) | 16.5V |
| Voltage - Input (Min) | 4.5V |
| Voltage - Output (Min/Fixed) | 1.245V |
