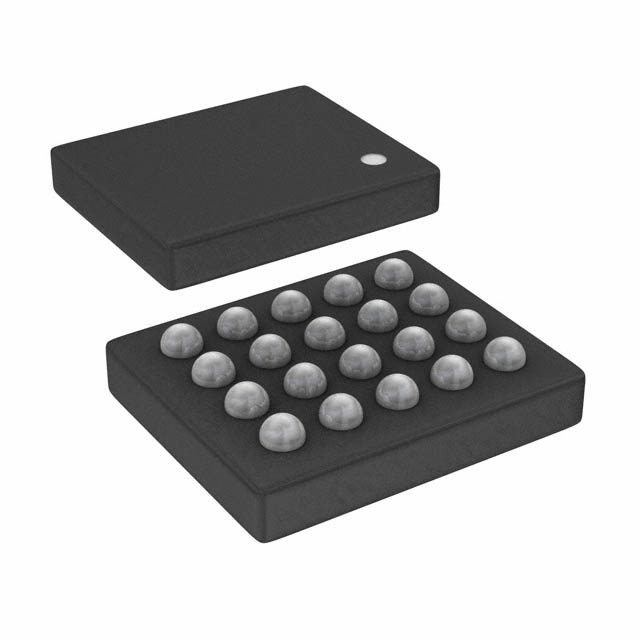

LX7165-02CSP-TR
IC REG BCK PROG/0.95V 5A 20WLCSPManufacturer: Microchip Technology
Categories: DC DC Switching Regulators
Quality Control: Learn More
The Microchip Technology LX7165-02CSP-TR is a highly efficient, synchronous buck switching regulator designed for demanding power conversion applications. This positive output voltage regulator operates with a minimum input voltage of 3V and a maximum of 5.5V, delivering up to 5A of output current. Featuring a fixed output voltage option of 0.95V (with a minimum programmable voltage of 0.6V), it utilizes a 1.875MHz switching frequency to minimize external component size and optimize power density. The LX7165-02CSP-TR employs a buck topology and a synchronous rectifier for enhanced efficiency. Packaged in a compact 20-UFBGA, WLCSP format and supplied on tape and reel, this component is suitable for surface mount applications. Its capabilities make it a strong candidate for use in various industrial and consumer electronics, including battery-powered devices and portable equipment.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 28 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 20-UFBGA, WLCSP |
| Output Type | Programmable (Fixed) |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Function | Step-Down |
| Current - Output | 5A |
| Operating Temperature | 0°C ~ 85°C (TA) |
| Output Configuration | Positive |
| Frequency - Switching | 1.875MHz |
| Voltage - Input (Max) | 5.5V |
| Topology | Buck |
| Supplier Device Package | 20-WLCSP |
| Synchronous Rectifier | Yes |
| Voltage - Output (Max) | 3.3V |
| Voltage - Input (Min) | 3V |
| Voltage - Output (Min/Fixed) | 0.6V (0.95V) |
