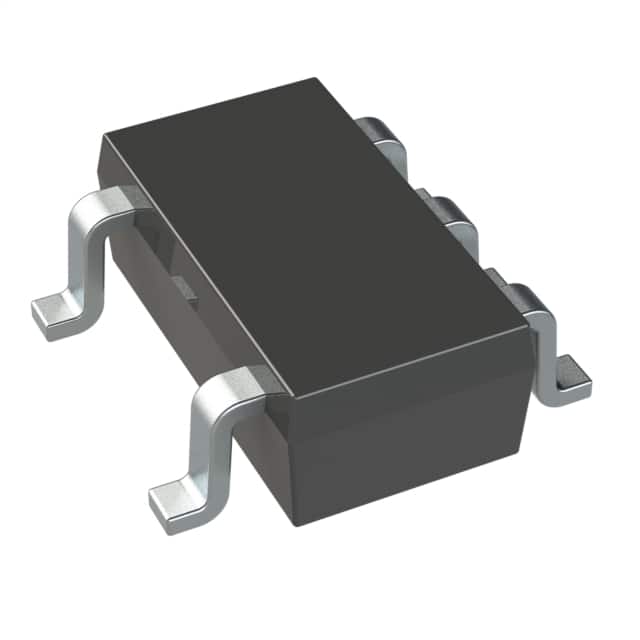

TC110301ECTTR
IC REG CTRLR BOOST SOT23A-5Manufacturer: Microchip Technology
Categories: DC DC Switching Controllers
Quality Control: Learn More
Boost Regulator Positive Output Step-Up DC-DC Controller IC SOT-23-5
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 16 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | SC-74A, SOT-753 |
| Output Type | Transistor Driver |
| Mounting Type | Surface Mount |
| Function | Step-Up |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Output Configuration | Positive |
| Frequency - Switching | 100kHz ~ 300kHz |
| Topology | Boost |
| Voltage - Supply (Vcc/Vdd) | 2V ~ 10V |
| Supplier Device Package | SOT-23-5 |
| Synchronous Rectifier | No |
| Control Features | Enable, Soft Start |
| Serial Interfaces | - |
| Output Phases | 1 |
| Duty Cycle (Max) | 92% |
| Clock Sync | No |
| Number of Outputs | 1 |
