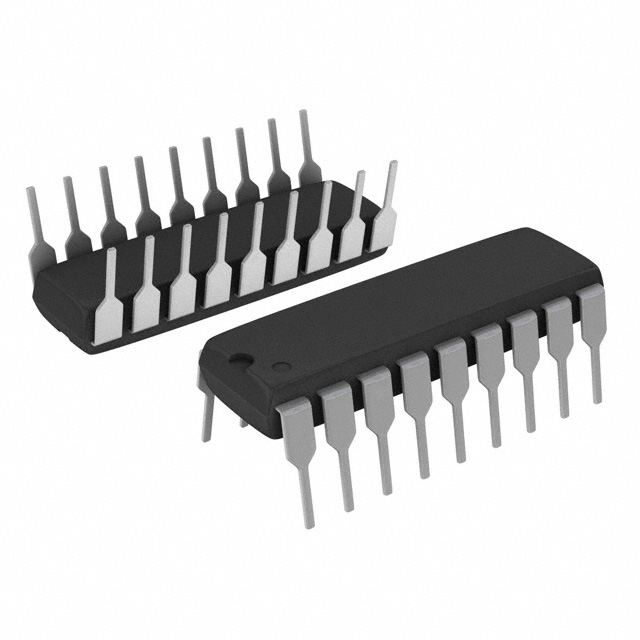

SG2526N
IC REG CTRLR BUCK/FLYBACK 18DIPManufacturer: Microchip Technology
Categories: DC DC Switching Controllers
Quality Control: Learn More
Buck, Flyback Regulator Positive Output Step-Down, Step-Up/Step-Down DC-DC Controller IC 18-PDIP
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 18-DIP (0.300"", 7.62mm) |
| Output Type | Transistor Driver |
| Mounting Type | Through Hole |
| Function | Step-Down, Step-Up/Step-Down |
| Operating Temperature | -25°C ~ 85°C (TA) |
| Output Configuration | Positive |
| Frequency - Switching | 1Hz ~ 350kHz |
| Topology | Buck, Flyback |
| Voltage - Supply (Vcc/Vdd) | 8V ~ 35V |
| Supplier Device Package | 18-PDIP |
| Synchronous Rectifier | Yes |
| Control Features | Dead Time Control, Enable, Frequency Control, Reset, Soft Start |
| Serial Interfaces | - |
| Output Phases | 1 |
| Duty Cycle (Max) | 49% |
| Clock Sync | No |
| Number of Outputs | 2 |
