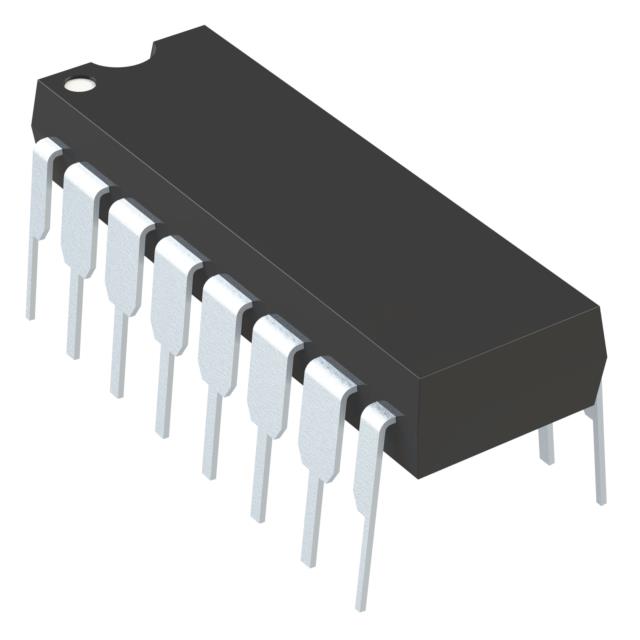

SG2524BN
IC REG CTRLR FLYBACK 16DIPManufacturer: Microchip Technology
Categories: DC DC Switching Controllers
Quality Control: Learn More
Microchip Technology SG2524BN is a versatile flyback voltage regulator controller designed for positive output applications. This 16-PDIP component operates as a step-up/step-down DC-DC converter, utilizing a transistor driver output for efficient power control. Key features include a wide input voltage range of 7V to 40V and a switching frequency adjustable from 50Hz to 600kHz. The controller supports a maximum duty cycle of 49% and integrates a synchronous rectifier for improved efficiency. Control is managed via an enable function, and the device offers two outputs with a single output phase. The SG2524BN is commonly employed in power supply designs across industrial automation, consumer electronics, and telecommunications sectors. It is supplied in a standard 16-PDIP package.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 16-DIP (0.300"", 7.62mm) |
| Output Type | Transistor Driver |
| Mounting Type | Through Hole |
| Function | Step-Up/Step-Down |
| Operating Temperature | -25°C ~ 85°C (TA) |
| Output Configuration | Positive |
| Frequency - Switching | 50Hz ~ 600kHz |
| Topology | Flyback |
| Voltage - Supply (Vcc/Vdd) | 7V ~ 40V |
| Supplier Device Package | 16-PDIP |
| Synchronous Rectifier | Yes |
| Control Features | Enable |
| Serial Interfaces | - |
| Output Phases | 1 |
| Duty Cycle (Max) | 49% |
| Clock Sync | No |
| Number of Outputs | 2 |
