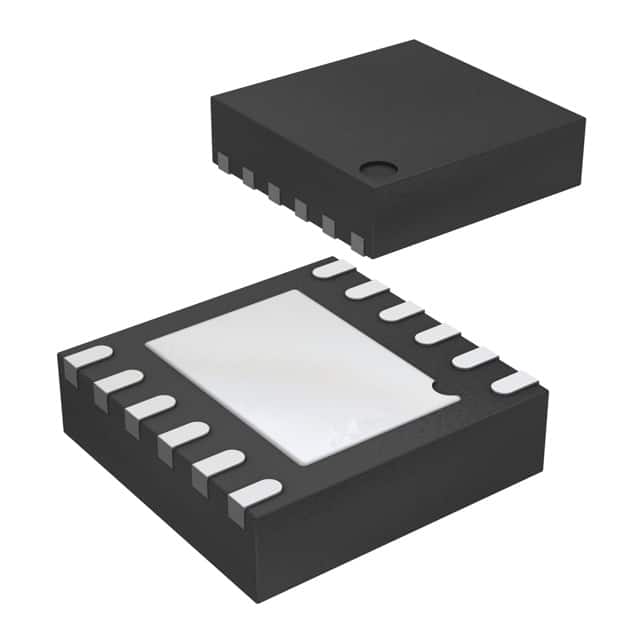

MIC2198YML-TR
IC REG CTRLR BUCK 12MLFManufacturer: Microchip Technology
Categories: DC DC Switching Controllers
Quality Control: Learn More
Buck Regulator Positive Output Step-Down DC-DC Controller IC 12-MLF™ (4x4)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 4 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 12-VFDFN Exposed Pad, 12-MLF® |
| Output Type | Transistor Driver |
| Mounting Type | Surface Mount |
| Function | Step-Down |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Output Configuration | Positive |
| Frequency - Switching | 500kHz |
| Topology | Buck |
| Voltage - Supply (Vcc/Vdd) | 4.5V ~ 32V |
| Supplier Device Package | 12-MLF™ (4x4) |
| Synchronous Rectifier | Yes |
| Control Features | Enable |
| Serial Interfaces | - |
| Output Phases | 1 |
| Duty Cycle (Max) | 76% |
| Clock Sync | No |
| Number of Outputs | 1 |
