MIC2185BQS
IC REG CTRLR BUCK 16QSOPManufacturer: Microchip Technology
Categories: DC DC Switching Controllers
Quality Control: Learn More
The Microchip Technology MIC2185BQS is a highly efficient, positive output, step-down DC-DC controller IC. This device features a robust buck topology and operates with a switching frequency of 400kHz, supporting a maximum duty cycle of 100%. Designed for surface mount installation within a 16-QSOP package, it offers single output phase capability. Key control features include Enable, Frequency Control, and Soft Start for optimized power management. The MIC2185BQS accommodates a supply voltage range of 2.9V to 14V. This component is ideal for applications requiring precise voltage regulation in sectors such as industrial control systems and power supply units.
Additional Information
Series: -RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 16-SSOP (0.154"", 3.90mm Width) |
| Output Type | Transistor Driver |
| Mounting Type | Surface Mount |
| Function | Step-Down |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Output Configuration | Positive |
| Frequency - Switching | 400kHz |
| Topology | Buck |
| Voltage - Supply (Vcc/Vdd) | 2.9V ~ 14V |
| Supplier Device Package | 16-QSOP |
| Synchronous Rectifier | No |
| Control Features | Enable, Frequency Control, Soft Start |
| Serial Interfaces | - |
| Output Phases | 1 |
| Duty Cycle (Max) | 100% |
| Clock Sync | Yes |
| Number of Outputs | 1 |
Request a Quote
Clients Also Buy

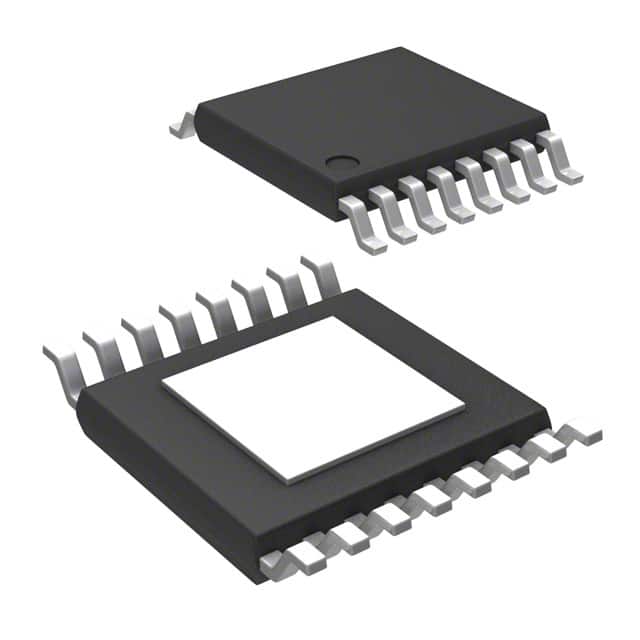

MIC2130-1YTSE
