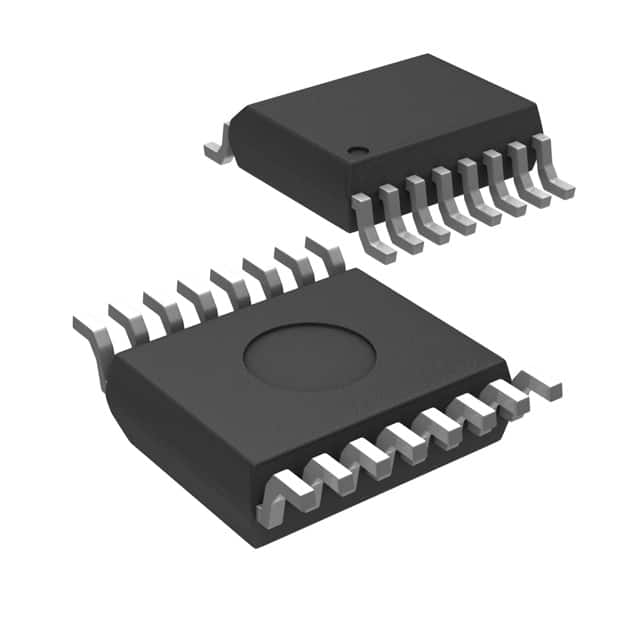

MIC2182BSM
IC REG CTRLR BUCK 16SSOPManufacturer: Microchip Technology
Categories: DC DC Switching Controllers
Quality Control: Learn More
Microchip Technology's MIC2182BSM is a high-performance, step-down DC-DC controller IC designed for efficient power conversion. This buck regulator features a positive output configuration and a single output phase, capable of driving external transistors. With a switching frequency of 300kHz and a maximum duty cycle of 86%, it offers robust performance for demanding applications. The MIC2182BSM integrates essential control features including Enable and Soft Start, ensuring smooth power-up sequences. Clock synchronization is supported for flexible system design. Rated for operation from 4.5V to 32V, this component is suitable for surface-mount applications and is supplied in a 16-SSOP package. Its synchronous rectifier capability enhances efficiency. This device finds utility in various industrial sectors, including consumer electronics and telecommunications.
Additional Information
Series: -RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 16-SSOP (0.209"", 5.30mm Width) |
| Output Type | Transistor Driver |
| Mounting Type | Surface Mount |
| Function | Step-Down |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Output Configuration | Positive |
| Frequency - Switching | 300kHz |
| Topology | Buck |
| Voltage - Supply (Vcc/Vdd) | 4.5V ~ 32V |
| Supplier Device Package | 16-SSOP |
| Synchronous Rectifier | Yes |
| Control Features | Enable, Soft Start |
| Serial Interfaces | - |
| Output Phases | 1 |
| Duty Cycle (Max) | 86% |
| Clock Sync | Yes |
| Number of Outputs | 1 |
