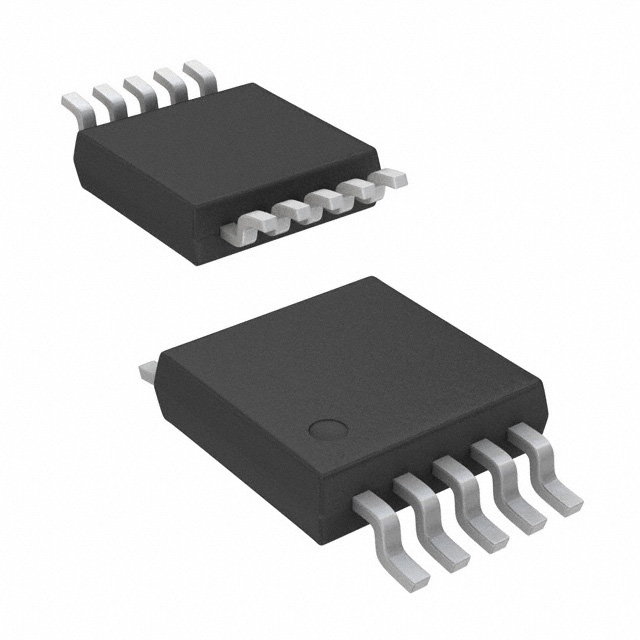

MIC2169YMM
IC REG CTRLR BUCK 10MSOPManufacturer: Microchip Technology
Categories: DC DC Switching Controllers
Quality Control: Learn More
Microchip Technology's MIC2169YMM is a highly efficient, single-output DC-DC buck controller designed for step-down power conversion. This device features a transistor driver output and operates with a switching frequency of up to 500kHz, offering a maximum duty cycle of 92%. The control circuitry incorporates current limiting for robust operation. It utilizes a synchronous rectification topology, enhancing overall efficiency. The MIC2169YMM is housed in a compact 10-MSOP package, suitable for surface mount applications. Operating across a wide temperature range of -40°C to 125°C, this controller is ideal for various demanding applications, including industrial power supplies and automotive electronics. The input voltage range is from 3V to 14.5V.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 10-TFSOP, 10-MSOP (0.118"", 3.00mm Width) |
| Output Type | Transistor Driver |
| Mounting Type | Surface Mount |
| Function | Step-Down |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Output Configuration | Positive |
| Frequency - Switching | 500kHz |
| Topology | Buck |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 14.5V |
| Supplier Device Package | 10-MSOP |
| Synchronous Rectifier | Yes |
| Control Features | Current Limit |
| Serial Interfaces | - |
| Output Phases | 1 |
| Duty Cycle (Max) | 92% |
| Clock Sync | No |
| Number of Outputs | 1 |
