MIC2150YML-TR
IC REG CTRLR BUCK 24MLFManufacturer: Microchip Technology
Categories: DC DC Switching Controllers
Quality Control: Learn More

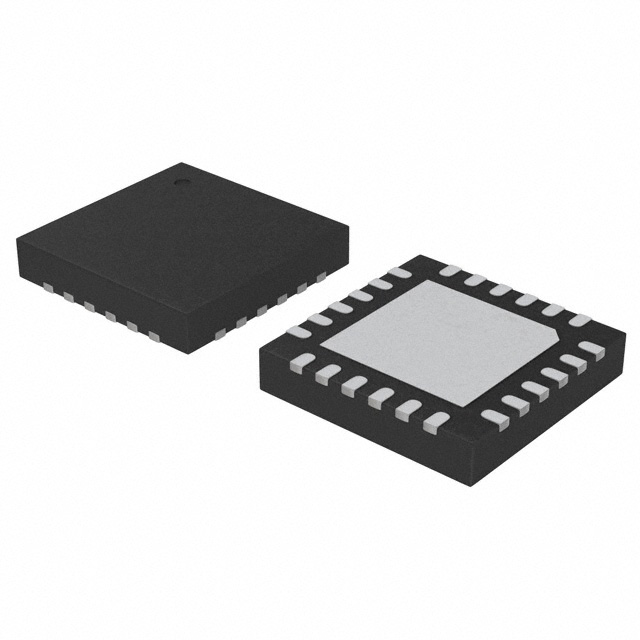

The Microchip Technology MIC2150YML-TR is a dual-output, synchronous buck controller designed for efficient step-down DC-DC conversion. This device operates with a switching frequency of 500kHz and offers a maximum duty cycle of 80%. It features robust control capabilities including current limit, enable, power good, and soft start. The MIC2150YML-TR is housed in a 24-MLF® (4x4) package, suitable for surface mount applications. Its positive output configuration and advanced transistor driver output are ideal for demanding power management solutions across various industries, including industrial automation and consumer electronics. The device supports a supply voltage range of 4.5V to 14.5V and operates across an industrial temperature range of -40°C to 125°C. This component is supplied on tape and reel for automated assembly.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 40 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 24-VFQFN Exposed Pad, 24-MLF® |
| Output Type | Transistor Driver |
| Mounting Type | Surface Mount |
| Function | Step-Down |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Output Configuration | Positive |
| Frequency - Switching | 500kHz |
| Topology | Buck |
| Voltage - Supply (Vcc/Vdd) | 4.5V ~ 14.5V |
| Supplier Device Package | 24-MLF® (4x4) |
| Synchronous Rectifier | Yes |
| Control Features | Current Limit, Enable, Power Good, Soft Start |
| Serial Interfaces | - |
| Output Phases | 2 |
| Duty Cycle (Max) | 80% |
| Clock Sync | No |
| Number of Outputs | 2 |
