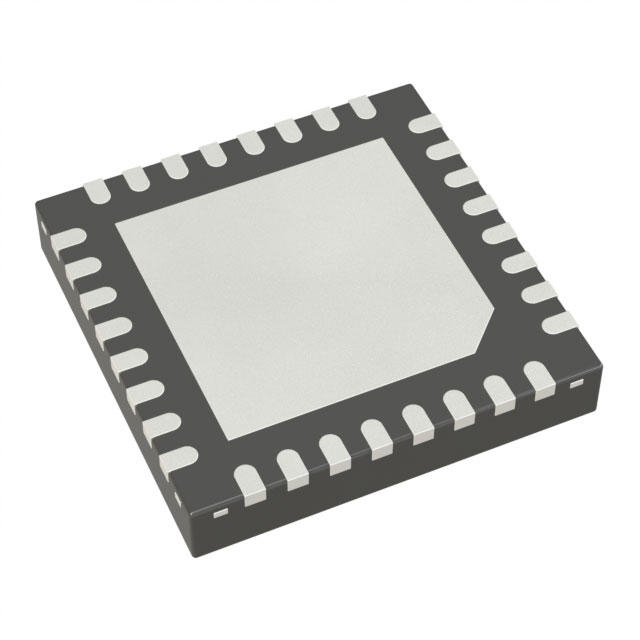

MIC2133YML-TR
75V, DUAL PHASE ADVANCED COT PWMManufacturer: Microchip Technology
Categories: DC DC Switching Controllers
Quality Control: Learn More
Buck Regulator Positive Output Step-Down DC-DC Controller IC 32-VQFN (5x5)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 6 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 32-VFQFN Exposed Pad |
| Output Type | Transistor Driver |
| Mounting Type | Surface Mount |
| Function | Step-Down |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Output Configuration | Positive |
| Frequency - Switching | 100kHz ~ 1MHz |
| Topology | Buck |
| Voltage - Supply (Vcc/Vdd) | 8V ~ 75V |
| Supplier Device Package | 32-VQFN (5x5) |
| Synchronous Rectifier | Yes |
| Control Features | Current Limit, Dead Time Control, Enable, Frequency Control, On Time Control, Phase Control, Power G |
| Serial Interfaces | - |
| Output Phases | 2 |
| Duty Cycle (Max) | 85% (Typ) |
| Clock Sync | No |
| Number of Outputs | 1 |
Request a Quote
Clients Also Buy
MIC2182YM-TR
IC REG CTRLR BUCK 16SOIC

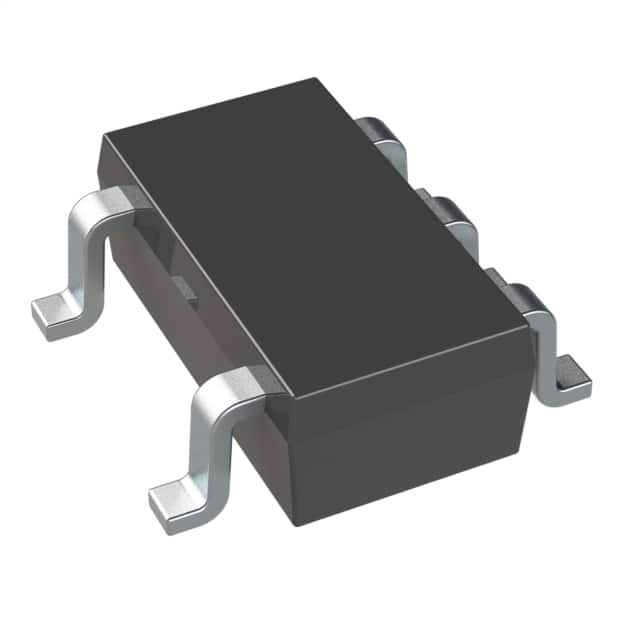

TC105333ECTTR
