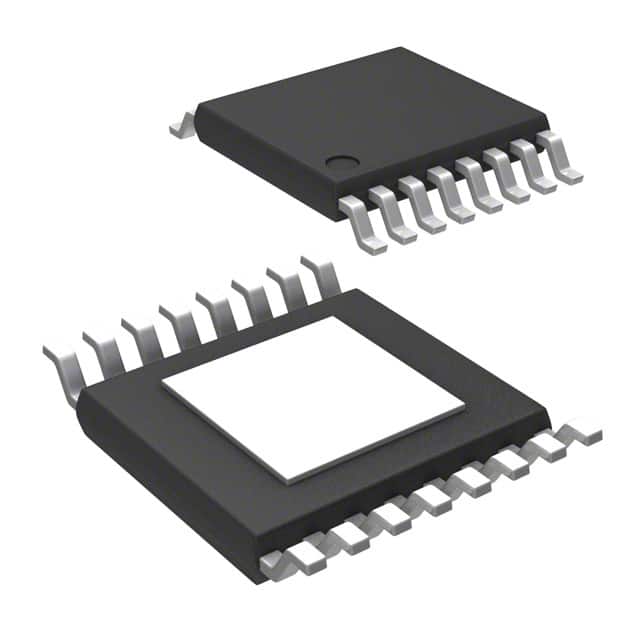

MIC2131-4YTSE
IC REG CTRLR BUCK 16TSSOPManufacturer: Microchip Technology
Categories: DC DC Switching Controllers
Quality Control: Learn More
The Microchip Technology MIC2131-4YTSE is a highly efficient, non-synchronous buck (step-down) DC-DC controller designed for positive output voltage regulation. This versatile component operates with an input voltage range of 8V to 40V and features a fixed switching frequency of 400kHz, enabling compact external component selection. Key control features include current limit, enable, power good, and soft start, providing robust power management capabilities. The device supports a maximum duty cycle of 80% and is packaged in a 16-eTSSOP for surface mount applications. Its design is suitable for power supply applications across various industries, including industrial automation and power management systems. The MIC2131-4YTSE is supplied in tube packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 40 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 16-TSSOP (0.173"", 4.40mm Width) Exposed Pad |
| Output Type | Transistor Driver |
| Mounting Type | Surface Mount |
| Function | Step-Down |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Output Configuration | Positive |
| Frequency - Switching | 400kHz |
| Topology | Buck |
| Voltage - Supply (Vcc/Vdd) | 8V ~ 40V |
| Supplier Device Package | 16-eTSSOP |
| Synchronous Rectifier | Yes |
| Control Features | Current Limit, Enable, Power Good, Soft Start |
| Serial Interfaces | - |
| Output Phases | 1 |
| Duty Cycle (Max) | 80% |
| Clock Sync | No |
| Number of Outputs | 1 |
