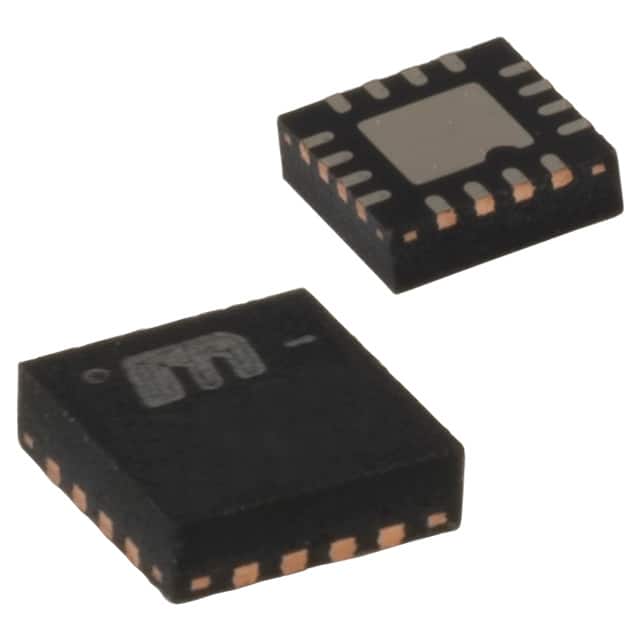

MIC2130-4YML-TR
IC REG CTRLR BUCK 16MLFManufacturer: Microchip Technology
Categories: DC DC Switching Controllers
Quality Control: Learn More
The Microchip Technology MIC2130-4YML-TR is a highly efficient Buck regulator controller IC designed for step-down DC-DC conversion. This device features a positive output configuration and a 1-phase output with a transistor driver. Operating with a wide input voltage range of 8V to 40V, it offers a maximum duty cycle of 80% and a switching frequency of 400kHz. Key control features include adjustable current limit, enable functionality, power good indication, and soft start. The MIC2130-4YML-TR utilizes a synchronous rectifier topology for enhanced efficiency. It is supplied in a 16-MLF® (4x4) surface-mount package, presented on a tape and reel for automated assembly. This component is frequently employed in industrial, automotive, and consumer electronics applications requiring robust power management solutions.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 40 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 16-VQFN Exposed Pad, 16-MLF® |
| Output Type | Transistor Driver |
| Mounting Type | Surface Mount |
| Function | Step-Down |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Output Configuration | Positive |
| Frequency - Switching | 400kHz |
| Topology | Buck |
| Voltage - Supply (Vcc/Vdd) | 8V ~ 40V |
| Supplier Device Package | 16-MLF® (4x4) |
| Synchronous Rectifier | Yes |
| Control Features | Current Limit, Enable, Power Good, Soft Start |
| Serial Interfaces | - |
| Output Phases | 1 |
| Duty Cycle (Max) | 80% |
| Clock Sync | No |
| Number of Outputs | 1 |
