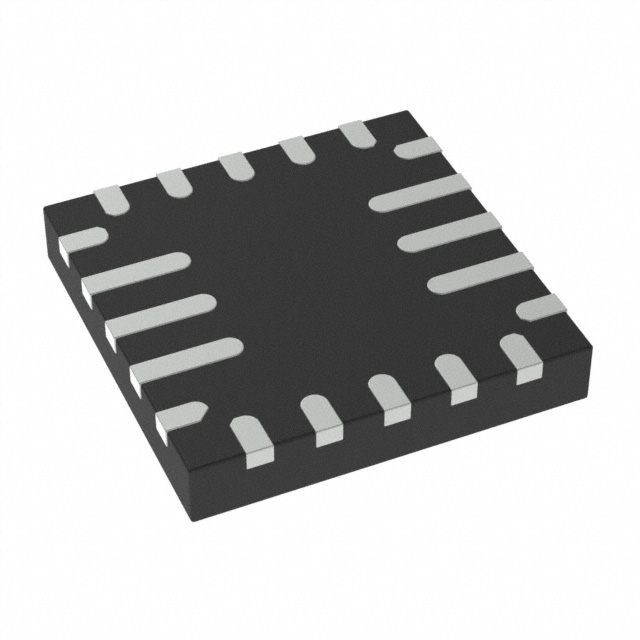

MIC2111BYMT-T5
IC REG CTRLR BUCK 20TQFNManufacturer: Microchip Technology
Categories: DC DC Switching Controllers
Quality Control: Learn More
Buck Regulator Positive Output Step-Down DC-DC Controller IC 20-TQFN (3x3)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 20-UFQFN |
| Output Type | PWM Signal |
| Mounting Type | Surface Mount |
| Function | Step-Down |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Output Configuration | Positive |
| Frequency - Switching | 200kHz ~ 2MHz |
| Topology | Buck |
| Voltage - Supply (Vcc/Vdd) | 3.135V ~ 5.5V |
| Supplier Device Package | 20-TQFN (3x3) |
| Synchronous Rectifier | No |
| Control Features | Enable, Frequency Control, Power Good, Soft Start |
| Serial Interfaces | - |
| Output Phases | 1 |
| Duty Cycle (Max) | - |
| Clock Sync | No |
| Number of Outputs | 1 |
Request a Quote
