ATF1504ASV-15QI100

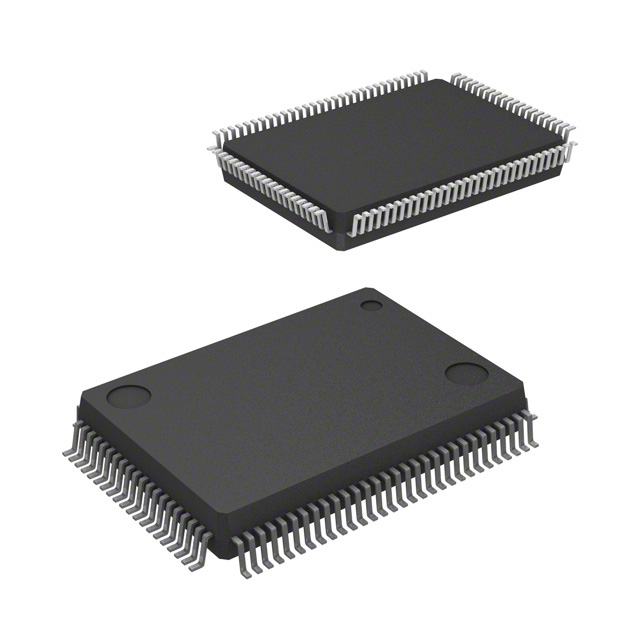

IC CPLD 64MC 15NS 100QFPManufacturer: Microchip Technology
Categories: CPLDs (Complex Programmable Logic Devices)
Quality Control: Learn More
The Microchip Technology ATF1504ASV-15QI100 is a 64-macrocell CPLD from the ATF15xx series, featuring a 15 ns propagation delay. This in-system programmable device offers 64 I/O pins and operates from a 3V to 3.6V supply. Supplied in a 100-QFP (100-PQFP) package for surface mounting, it is rated for an operating temperature range of -40°C to 85°C. The ATF1504ASV-15QI100 is suitable for applications in industrial automation, consumer electronics, and telecommunications, where flexible logic implementation and efficient board space utilization are critical. Its robust design supports a minimum of 10,000 program/erase cycles.
Additional Information
Series: ATF15xxRoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 100-BQFP |
| Mounting Type | Surface Mount |
| Programmable Type | In System Programmable (min 10K program/erase cycles) |
| Number of Macrocells | 64 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Delay Time tpd(1) Max | 15 ns |
| Supplier Device Package | 100-PQFP (14x20) |
| Voltage Supply - Internal | 3V ~ 3.6V |
| Number of I/O | 64 |
| Programmable | Not Verified |
