ATF1504ASL-25JU44

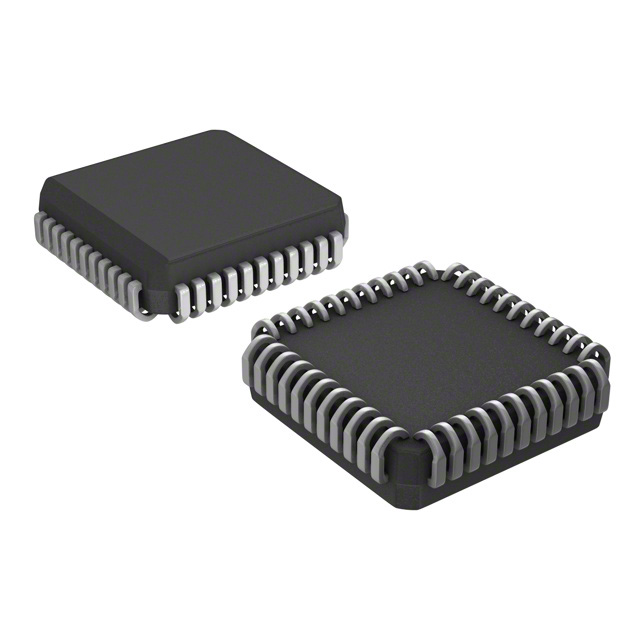

IC CPLD 64MC 25NS 44PLCCManufacturer: Microchip Technology
Categories: CPLDs (Complex Programmable Logic Devices)
Quality Control: Learn More
Microchip Technology ATF15xx series ATF1504ASL-25JU44 is a 64-macrocell, in-system programmable Complex Programmable Logic Device (CPLD) with a maximum propagation delay of 25 ns. This device features 32 user I/O pins and operates from a 4.5V to 5.5V internal supply voltage. Housed in a 44-PLCC (J-Lead) surface-mount package, it is suitable for applications requiring robust logic implementation in industrial and commercial sectors. The ATF1504ASL-25JU44 offers a minimum of 10,000 program/erase cycles for reliable in-system reprogrammability. Its operational temperature range is -40°C to 85°C.
Additional Information
Series: ATF15xxRoHS Status: ROHS3 CompliantManufacturer Lead Time: 52 week(s)Product Status: ActivePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 44-LCC (J-Lead) |
| Mounting Type | Surface Mount |
| Programmable Type | In System Programmable (min 10K program/erase cycles) |
| Number of Macrocells | 64 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Delay Time tpd(1) Max | 25 ns |
| Supplier Device Package | 44-PLCC (16.6x16.6) |
| Voltage Supply - Internal | 4.5V ~ 5.5V |
| Number of I/O | 32 |
| Programmable | Not Verified |
