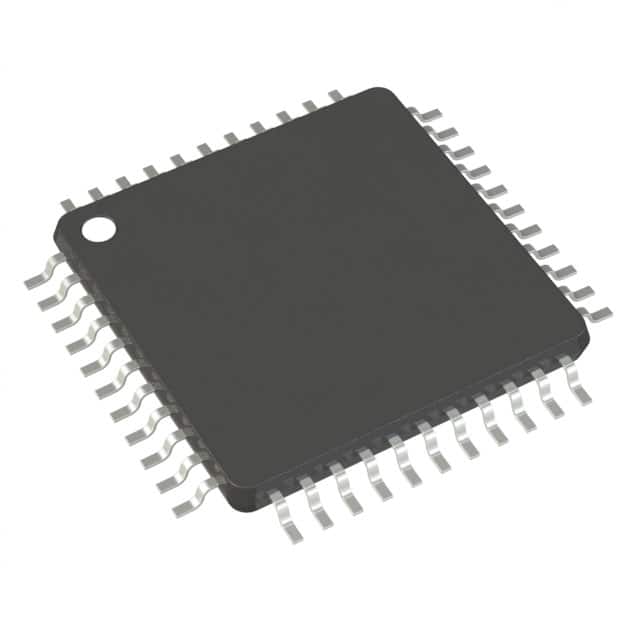

ATF1504ASL-25AU44
IC CPLD 64MC 25NS 44TQFPManufacturer: Microchip Technology
Categories: CPLDs (Complex Programmable Logic Devices)
Quality Control: Learn More
Microchip Technology's ATF1504ASL-25AU44 is a 64-macrocell CPLD from the ATF15xx series, offering a maximum propagation delay of 25 ns. This In-System Programmable device, with a minimum of 10,000 program/erase cycles, is housed in a 44-TQFP (10x10) surface-mount package. Featuring 32 user I/O pins and an operating temperature range of -40°C to 85°C, it operates on a 4.5V to 5.5V supply. The ATF1504ASL-25AU44 is commonly utilized in industrial automation, automotive electronics, and consumer electronics applications.
Additional Information
Series: ATF15xxRoHS Status: ROHS3 CompliantManufacturer Lead Time: 52 week(s)Product Status: ActivePackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 44-TQFP |
| Mounting Type | Surface Mount |
| Programmable Type | In System Programmable (min 10K program/erase cycles) |
| Number of Macrocells | 64 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Delay Time tpd(1) Max | 25 ns |
| Supplier Device Package | 44-TQFP (10x10) |
| Voltage Supply - Internal | 4.5V ~ 5.5V |
| Number of I/O | 32 |
| Programmable | Verified |
