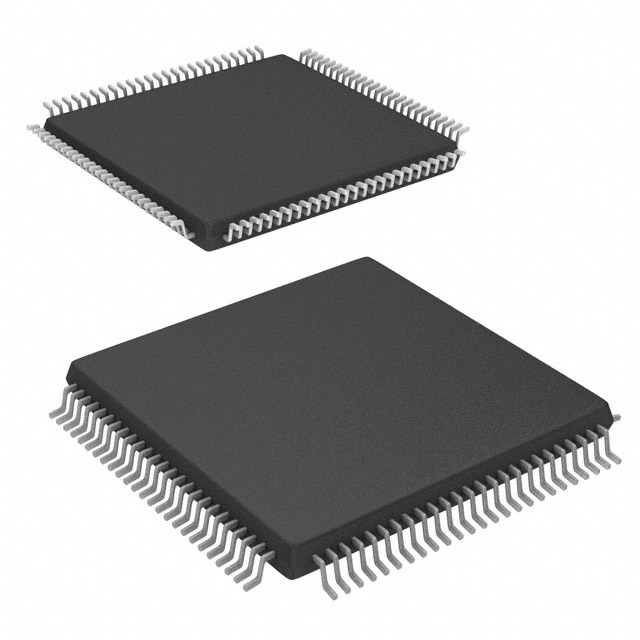

ATF1504ASL-25AU100
IC CPLD 64MC 25NS 100TQFPManufacturer: Microchip Technology
Categories: CPLDs (Complex Programmable Logic Devices)
Quality Control: Learn More
Microchip Technology ATF1504ASL-25AU100 is a 64-macrocell Complex Programmable Logic Device (CPLD) from the ATF15xx series. This device offers a maximum propagation delay of 25 ns and features 64 user-configurable I/O pins. It supports in-system programmability with a minimum of 10,000 program/erase cycles. The ATF1504ASL-25AU100 operates from a 4.5V to 5.5V supply and is housed in a 100-TQFP (14x14) surface-mount package. It is designed for applications requiring flexible logic implementation and is suitable for use in industrial control, telecommunications infrastructure, and consumer electronics. The component operates within an ambient temperature range of -40°C to 85°C and is supplied in trays.
Additional Information
Series: ATF15xxRoHS Status: ROHS3 CompliantManufacturer Lead Time: 52 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 100-TQFP |
| Mounting Type | Surface Mount |
| Programmable Type | In System Programmable (min 10K program/erase cycles) |
| Number of Macrocells | 64 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Delay Time tpd(1) Max | 25 ns |
| Supplier Device Package | 100-TQFP (14x14) |
| Voltage Supply - Internal | 4.5V ~ 5.5V |
| Number of I/O | 64 |
| Programmable | Not Verified |
