SY89538LHY
IC CLOCK SYNTHESIZER 64TQFPManufacturer: Microchip Technology
Categories: Clock Generators, PLLs, Frequency Synthesizers
Quality Control: Learn More
Microchip Technology SY89538LHY is a high-performance clock synthesizer and fanout buffer from the Precision Edge® series. This device operates up to 756MHz and supports differential input and output signaling. It features a versatile input stage compatible with CMOS, HSTL, LVDS, LVPECL, LVTTL, SSTL, and crystal sources, along with multiple output formats including LVDS and LVPECL. The SY89538LHY incorporates a PLL and offers a programmable input-to-output ratio of 3:7. Designed for surface mount applications, it is housed in a 64-TQFP Exposed Pad package. This component is suitable for demanding applications in telecommunications, data networking, and high-speed computing. It operates within a temperature range of -40°C to 85°C and requires a supply voltage between 2.375V and 3.6V.
Additional Information
Series: Precision Edge®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |

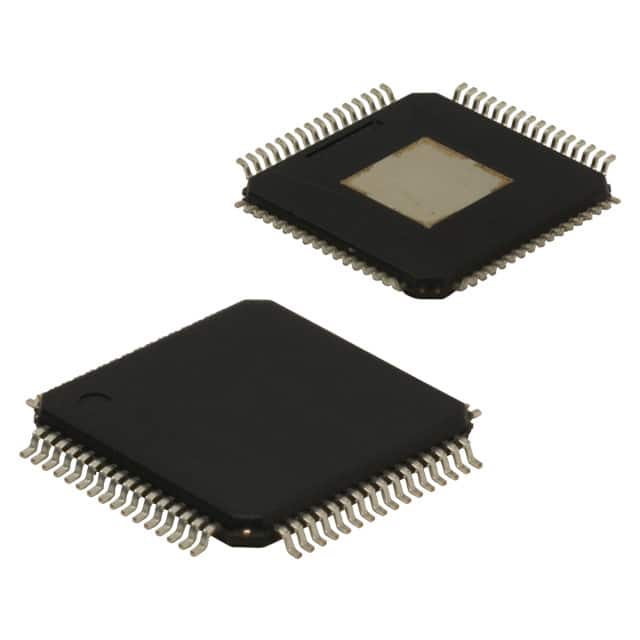

| Package / Case | 64-TQFP Exposed Pad |
| Mounting Type | Surface Mount |
| Output | LVDS, LVPECL |
| Frequency - Max | 756MHz |
| Type | Clock Synthesizer/Fanout Buffer |
| Input | CMOS, HSTL, LVDS, LVPECL, LVTTL, SSTL, Crystal |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 2.375V ~ 3.6V |
| Ratio - Input:Output | 3:7 |
| Differential - Input:Output | Yes/Yes |
| Supplier Device Package | 64-TQFP-EP (10x10) |
| PLL | Yes |
| Divider/Multiplier | Yes/No |
| Number of Circuits | 1 |
| Programmable | Not Verified |
