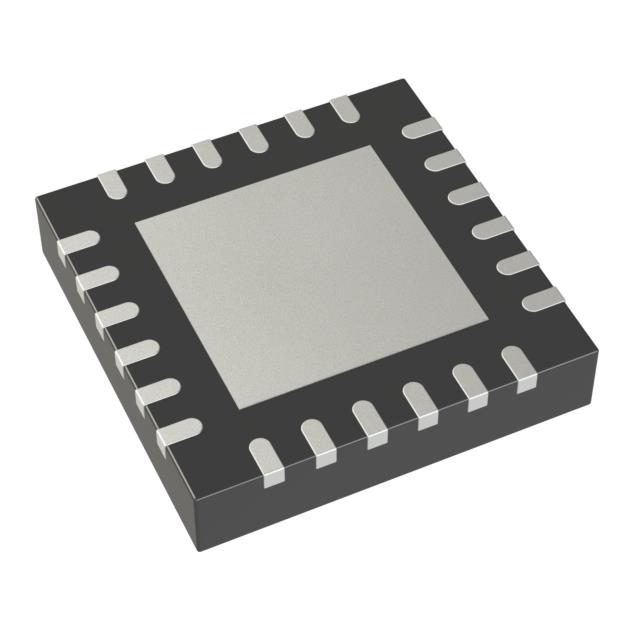

SM806022UMG
IC CLOCK GENERATOR 24QFNManufacturer: Microchip Technology
Categories: Clock Generators, PLLs, Frequency Synthesizers
Quality Control: Learn More
Clock Generator IC 300MHz, 875MHz 1 24-VFQFN Exposed Pad
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 24-VFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Output | HCSL, LVCMOS, LVDS, LVPECL |
| Frequency - Max | 300MHz, 875MHz |
| Type | Clock Generator |
| Input | HCSL, LVCMOS, LVDS, LVPECL, Crystal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Voltage - Supply | 2.375V ~ 2.625V, 3.135V ~ 3.465V |
| Ratio - Input:Output | 2:6 |
| Differential - Input:Output | No/Yes |
| Supplier Device Package | 24-QFN (4x4) |
| PLL | Yes with Bypass |
| Divider/Multiplier | Yes/No |
| Number of Circuits | 1 |
| Programmable | Not Verified |
Request a Quote
