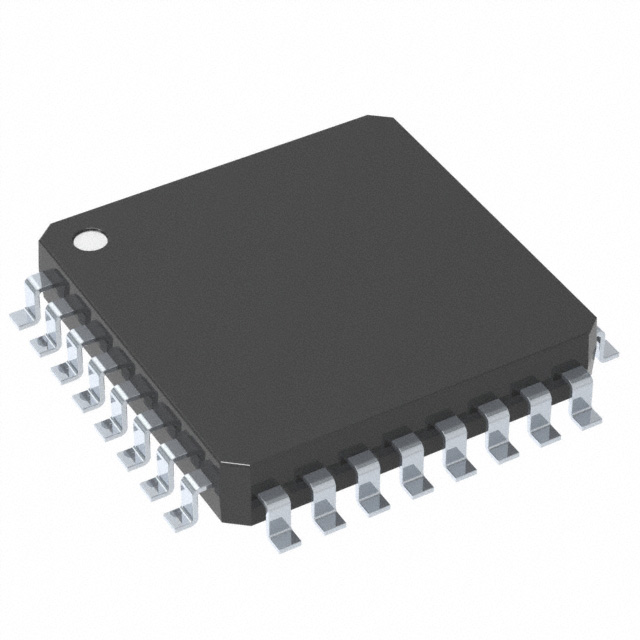

ZL40260QGG1
IC CLK BUF 2:10 1.6GHZ 32ETQFPManufacturer: Microchip Technology
Categories: Clock Buffers, Drivers
Quality Control: Learn More
Microchip Technology ZL40260QGG1 is a high-performance clock fanout buffer and multiplexer IC. This device offers a 2:10 input-to-output ratio, supporting up to 1.6 GHz operation. It features a wide range of input signaling compatibility, including CML, HCSL, LVCMOS, LVDS, LVPECL, and SSTL, with LVPECL outputs. The ZL40260QGG1 is housed in a 32-lead eTQFP (7x7) exposed pad package, suitable for surface mount applications. It operates within a temperature range of -40°C to 85°C and accepts dual voltage supplies of 2.375V to 2.625V and 3.135V to 3.465V. This component is utilized in demanding applications such as high-speed networking, telecommunications infrastructure, and advanced computing systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 32-TQFP Exposed Pad |
| Number of Circuits | 1 |
| Mounting Type | Surface Mount |
| Output | LVPECL |
| Type | Fanout Buffer (Distribution), Multiplexer |
| Input | CML, HCSL, LVCMOS, LVDS, LVPECL, SSTL |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Voltage - Supply | 2.375V ~ 2.625V, 3.135V ~ 3.465V |
| Ratio - Input:Output | 2:10 |
| Differential - Input:Output | Yes/Yes |
| Supplier Device Package | 32-eTQFP (7x7) |
| Frequency - Max | 1.6 GHz |
