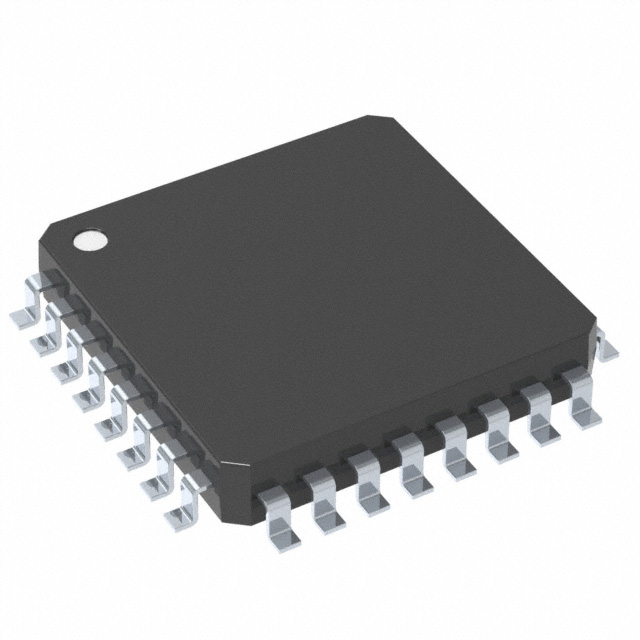

ZL40260QGF1
IC CLK BUF 2:10 1.6GHZ 32ETQFPManufacturer: Microchip Technology
Categories: Clock Buffers, Drivers
Quality Control: Learn More
Microchip Technology's ZL40260QGF1 is a high-performance clock fanout buffer and multiplexer. This 2:10 ratio device supports input standards including CML, HCSL, LVCMOS, LVDS, LVPECL, and SSTL, with a maximum operating frequency of 1.6 GHz. It features differential input and output capabilities and is housed in a 32-eTQFP (7x7) exposed pad package. The ZL40260QGF1 operates across a wide temperature range of -40°C to 85°C and is supplied on tape and reel. It is designed for applications requiring precise clock distribution and signal integrity, commonly found in networking infrastructure, telecommunications, and high-speed computing systems. The device supports dual voltage supply ranges: 2.375V to 2.625V and 3.135V to 3.465V.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 32-TQFP Exposed Pad |
| Number of Circuits | 1 |
| Mounting Type | Surface Mount |
| Output | LVPECL |
| Type | Fanout Buffer (Distribution), Multiplexer |
| Input | CML, HCSL, LVCMOS, LVDS, LVPECL, SSTL |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Voltage - Supply | 2.375V ~ 2.625V, 3.135V ~ 3.465V |
| Ratio - Input:Output | 2:10 |
| Differential - Input:Output | Yes/Yes |
| Supplier Device Package | 32-eTQFP (7x7) |
| Frequency - Max | 1.6 GHz |
Request a Quote
Clients Also Buy

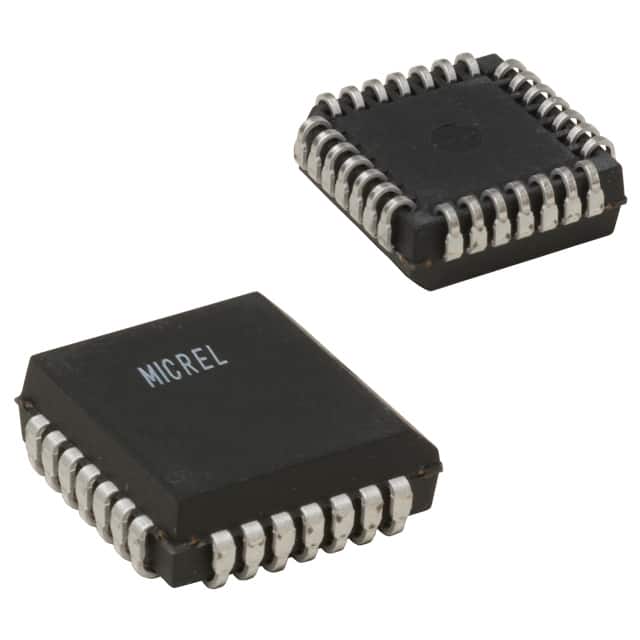

SY100E310LJC
