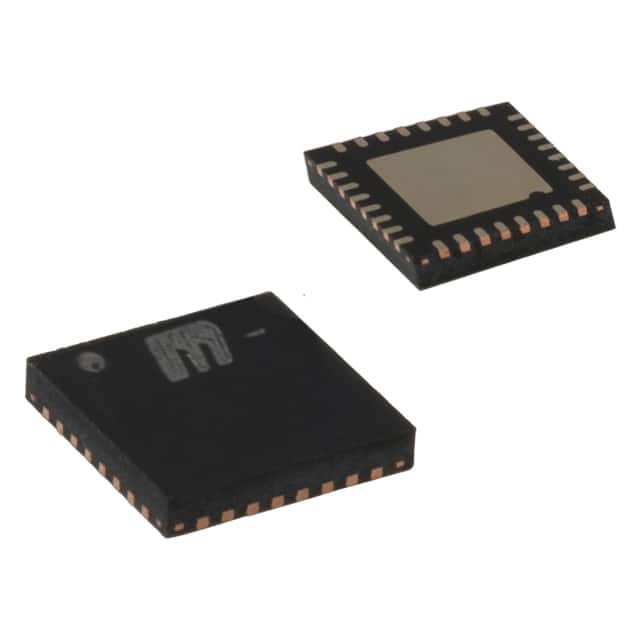

SY89846UMG-TR
IC CLK BUFFER 2:5 2GHZ 32QFNManufacturer: Microchip Technology
Categories: Clock Buffers, Drivers
Quality Control: Learn More
Microchip Technology's SY89846UMG-TR is a high-performance 2:5 clock fanout buffer and multiplexer from the Precision Edge® series. This advanced component supports differential signaling, accepting CML, LVDS, and PECL inputs and providing LVPECL outputs with a maximum frequency of 2 GHz. Designed for demanding signal distribution applications, it features a 32-VFQFN exposed pad package for efficient thermal management. The SY89846UMG-TR is suitable for surface mounting and operates within a temperature range of -40°C to 85°C. Its robust design and broad input compatibility make it ideal for use in high-speed communication systems, networking infrastructure, and data center equipment. This device is supplied in a tape and reel package for automated assembly.
Additional Information
Series: Precision Edge®RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 32-VFQFN Exposed Pad |
| Number of Circuits | 1 |
| Mounting Type | Surface Mount |
| Output | LVPECL |
| Type | Fanout Buffer (Distribution), Multiplexer |
| Input | CML, LVDS, PECL |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 2.375V ~ 3.6V |
| Ratio - Input:Output | 2:5 |
| Differential - Input:Output | Yes/Yes |
| Supplier Device Package | 32-QFN (5x5) |
| Frequency - Max | 2 GHz |
