SY100EP14UK4I-TR
IC CLK BUFFER 2:5 2GHZ 20TSSOPManufacturer: Microchip Technology
Categories: Clock Buffers, Drivers
Quality Control: Learn More

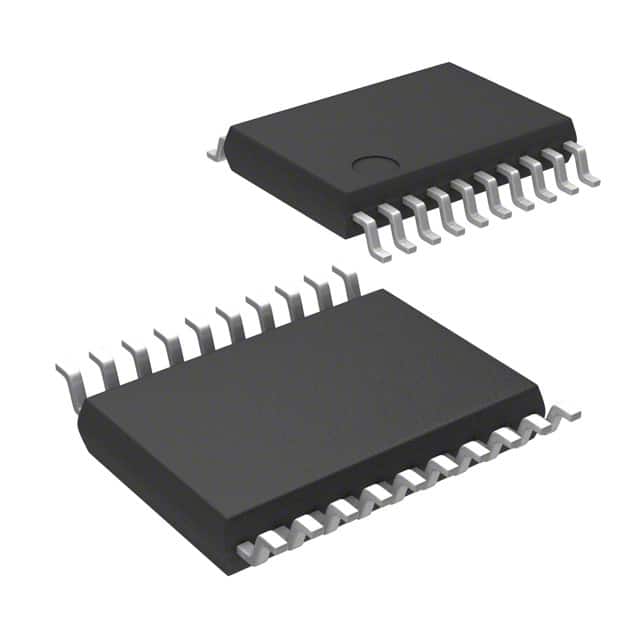

Microchip Technology's SY100EP14UK4I-TR is a 2:5 clock fanout buffer and multiplexer IC from the 100EP, Precision Edge®, ECL Pro® series. This device supports differential signaling for both input and output, operating at frequencies up to 2 GHz. It accepts HSTL, LVECL, and LVPECL inputs and provides LVECL and LVPECL outputs. The SY100EP14UK4I-TR is housed in a 20-TSSOP package with a 4.40mm width and is designed for surface mounting. It operates within a voltage range of 2.37V to 5.5V and functions across an industrial temperature range of -40°C to 85°C. This component is commonly utilized in high-speed digital systems, telecommunications infrastructure, and test and measurement equipment. The device is supplied on tape and reel.
Additional Information
Series: 100EP, Precision Edge®, ECL Pro®RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 20-TSSOP (0.173"", 4.40mm Width) |
| Number of Circuits | 1 |
| Mounting Type | Surface Mount |
| Output | LVECL, LVPECL |
| Type | Fanout Buffer (Distribution), Multiplexer |
| Input | HSTL, LVECL, LVPECL |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 2.37V ~ 5.5V |
| Ratio - Input:Output | 2:5 |
| Differential - Input:Output | Yes/Yes |
| Supplier Device Package | 20-TSSOP |
| Frequency - Max | 2 GHz |
