PL138-98FC
IC CLK BUFFER 2:9 700MHZ 32LQFPManufacturer: Microchip Technology
Categories: Clock Buffers, Drivers
Quality Control: Learn More
Microchip Technology PL138-98FC is a high-performance clock buffer and distribution IC. Featuring a 2:9 input-to-output ratio, this device supports a maximum frequency of 700 MHz. It accepts various input standards including CML, HCSL, LVCMOS, LVDS, LVHSTL, LVPECL, and SSTL, with LVPECL outputs. The PL138-98FC is housed in a 32-LQFP exposed pad package for surface mounting. This component is suitable for demanding applications in networking, telecommunications, and high-speed computing. The operating temperature range is 0°C to 70°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |

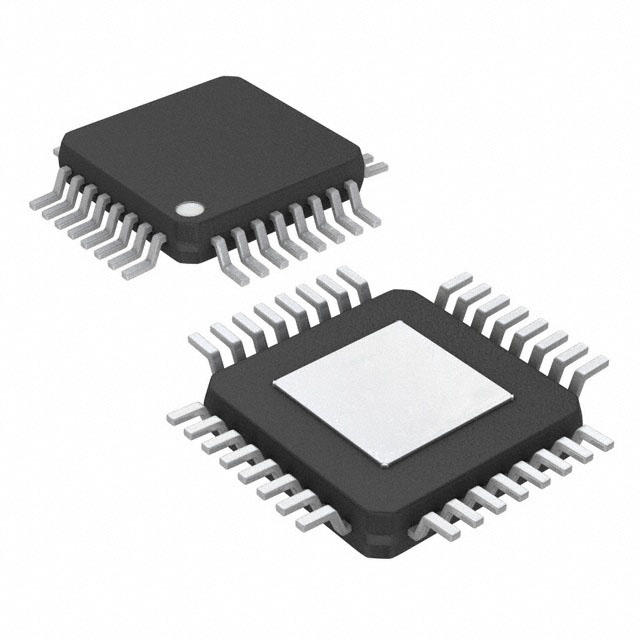

| Package / Case | 32-LQFP Exposed Pad |
| Number of Circuits | 1 |
| Mounting Type | Surface Mount |
| Output | LVPECL |
| Type | Fanout Buffer (Distribution), Multiplexer |
| Input | CML, HCSL, LVCMOS, LVDS, LVHSTL, LVPECL, SSTL |
| Operating Temperature | 0°C ~ 70°C |
| Voltage - Supply | 2.375V ~ 3.63V |
| Ratio - Input:Output | 2:9 |
| Differential - Input:Output | Yes/Yes |
| Supplier Device Package | 32-LQFP (7x7) |
| Frequency - Max | 700 MHz |
