678-4
BRIDGE RECTIFIERManufacturer: Microchip Technology
Categories: Bridge Rectifiers
Quality Control: Learn More
Microchip Technology's 678-4 is a three-phase bridge rectifier designed for robust power rectification. This standard rectifier features a maximum repetitive peak reverse voltage of 400V and an average forward rectified current (Io) of 25A. The forward voltage drop (Vf) is a maximum of 1.2V at 10A, and the reverse leakage current is a minimal 10 µA at 400V. Engineered for demanding applications, it operates across a wide temperature range of -65°C to 150°C (TJ). The chassis mount package facilitates efficient thermal management in industrial and automotive power supply systems, motor control, and power generation equipment. Supplied in bulk packaging, this component offers reliable performance for high-power rectification needs.
Additional Information
Series: -RoHS Status: RoHS non-compliantManufacturer Lead Time: 40 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | NC |
| Mounting Type | Chassis Mount |
| Diode Type | Three Phase |
| Operating Temperature | -65°C ~ 150°C (TJ) |
| Technology | Standard |
| Supplier Device Package | NC |
| Grade | - |
| Voltage - Peak Reverse (Max) | 400 V |
| Current - Average Rectified (Io) | 25 A |
| Voltage - Forward (Vf) (Max) @ If | 1.2 V @ 10 A |
| Current - Reverse Leakage @ Vr | 10 µA @ 400 V |
| Qualification | - |
Request a Quote
Clients Also Buy
1N4436
SINGLE PHASE BRIDGE RECTIFIER

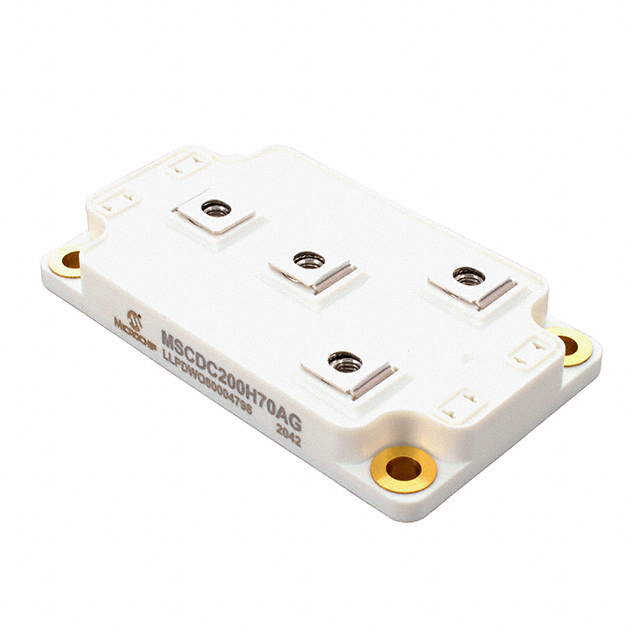

MSCDC200H70AG
PM-DIODE-SIC-SBD-SP6C

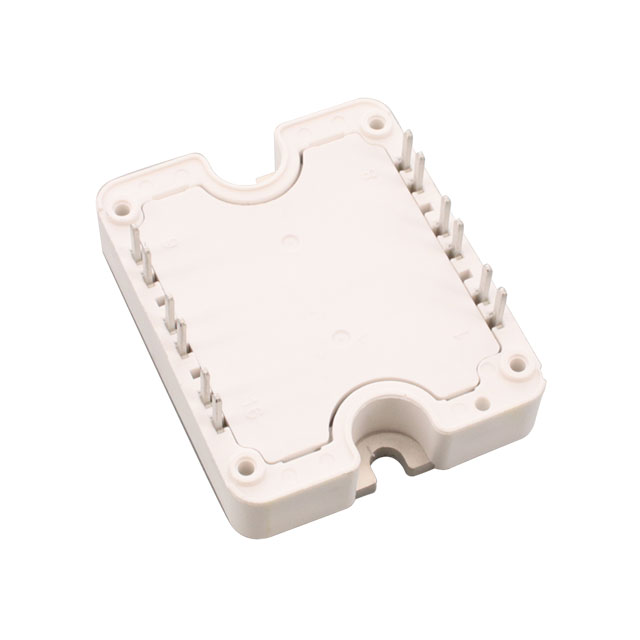

MSCDC50X1201AG
