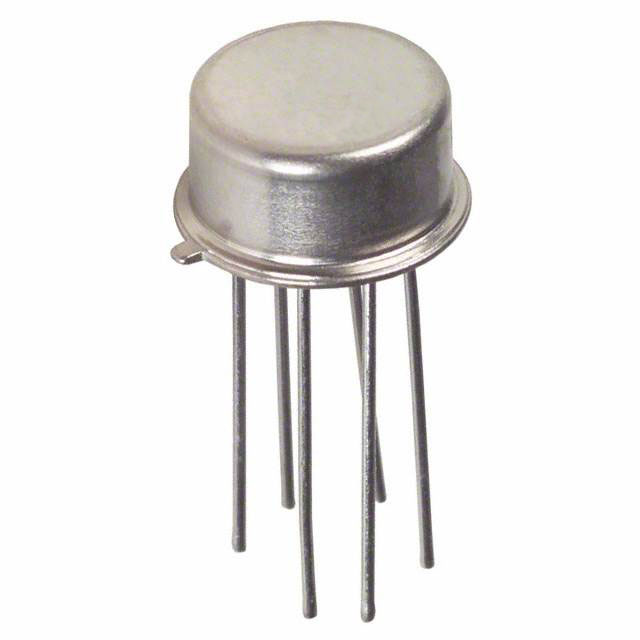

JANTX2N2060
NPN TRANSISTORManufacturer: Microchip Technology
Categories: Bipolar Transistor Arrays
Quality Control: Learn More
Bipolar (BJT) Transistor Array 2 NPN (Dual) 60V 500mA 600mW Through Hole TO-78-6
Additional Information
Series: -RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: 22 week(s)Product Status: ActivePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | TO-78-6 Metal Can |
| Mounting Type | Through Hole |
| Transistor Type | 2 NPN (Dual) |
| Operating Temperature | -65°C ~ 200°C (TJ) |
| Power - Max | 600mW |
| Current - Collector (Ic) (Max) | 500mA |
| Voltage - Collector Emitter Breakdown (Max) | 60V |
| Vce Saturation (Max) @ Ib, Ic | 300mV @ 5mA, 50mA |
| Current - Collector Cutoff (Max) | 10µA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 50 @ 10mA, 5V |
| Frequency - Transition | - |
| Supplier Device Package | TO-78-6 |
| Grade | Military |
| Qualification | MIL-PRF-19500/270 |
