JANSD2N3810U
DUAL RH SMALL-SIGNAL BJTManufacturer: Microchip Technology
Categories: Bipolar Transistor Arrays
Quality Control: Learn More
Microchip Technology JANSD2N3810U is a dual PNP bipolar junction transistor array designed for high-reliability applications. This surface mount component, housed in a 6-SMD, No Lead package (U), offers a collector current capability of up to 50mA and a collector-emitter breakdown voltage of 60V. The device exhibits a minimum DC current gain (hFE) of 150 at 1mA and 5V, with a saturation voltage (Vce(sat)) of 250mV at 100µA, 1mA. Operating across an extended temperature range of -65°C to 200°C, this component meets MIL-PRF-19500/336 qualification standards, making it suitable for demanding environments in aerospace and defense sectors. Its 350mW power dissipation capability further enhances its suitability for critical system designs.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: 29 week(s)Product Status: ActivePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 6-SMD, No Lead |
| Mounting Type | Surface Mount |
| Transistor Type | 2 PNP (Dual) |
| Operating Temperature | -65°C ~ 200°C (TJ) |
| Power - Max | 350mW |
| Current - Collector (Ic) (Max) | 50mA |
| Voltage - Collector Emitter Breakdown (Max) | 60V |
| Vce Saturation (Max) @ Ib, Ic | 250mV @ 100µA, 1mA |
| Current - Collector Cutoff (Max) | 10µA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 150 @ 1mA, 5V |
| Frequency - Transition | - |
| Supplier Device Package | U |
| Grade | Military |
| Qualification | MIL-PRF-19500/336 |
Request a Quote
Clients Also Buy

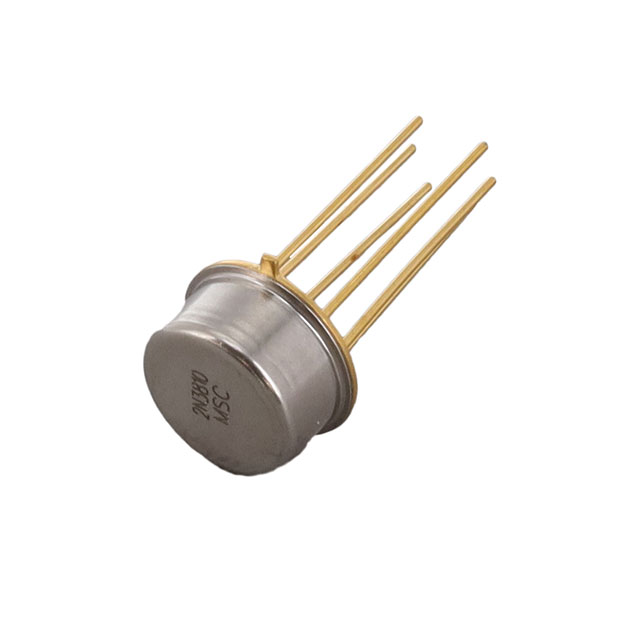

2N2916
