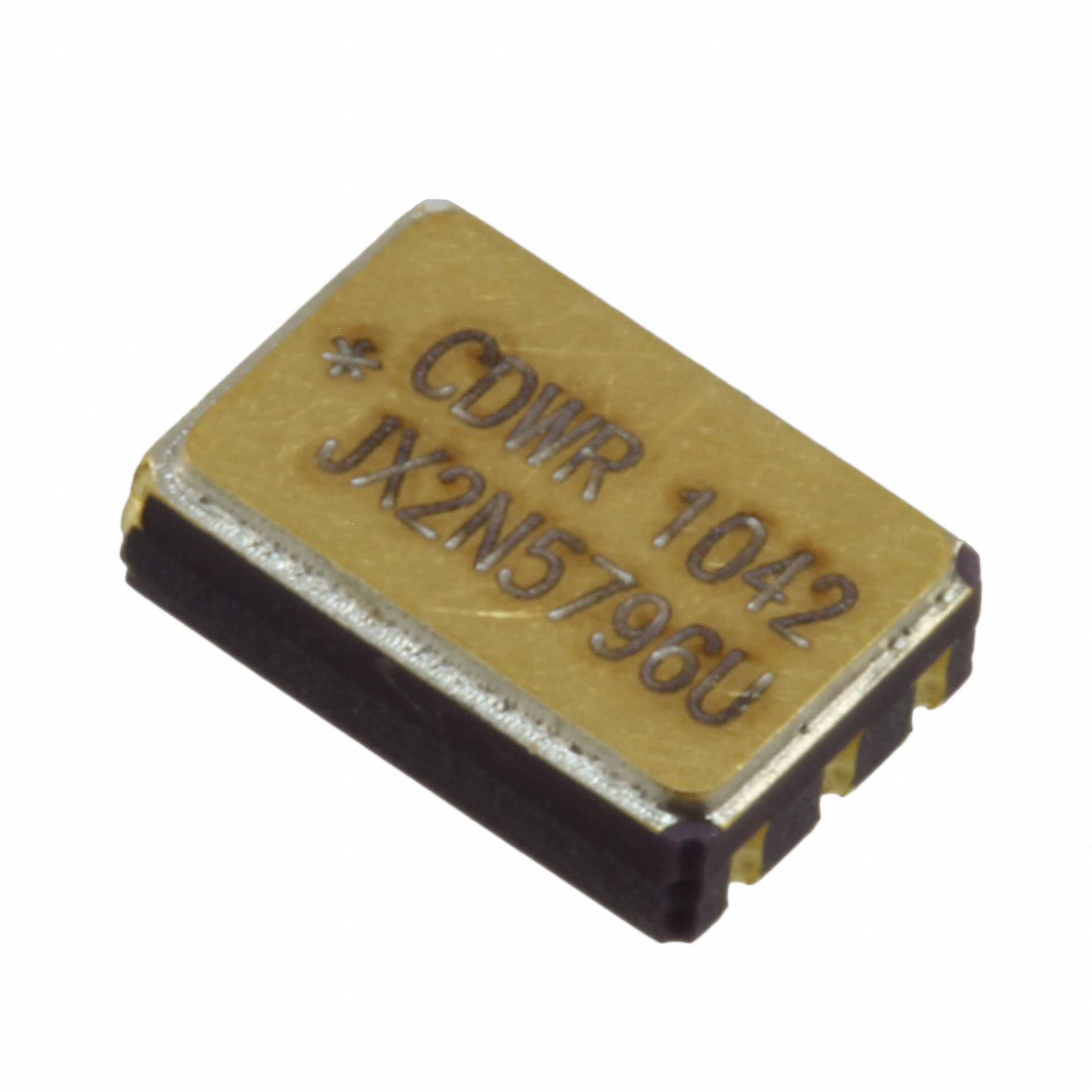

JAN2N5794AUC/TR
TRANSISTOR DUAL SMALL-SIGNAL BJTManufacturer: Microchip Technology
Categories: Bipolar Transistor Arrays
Quality Control: Learn More
Bipolar (BJT) Transistor Array 2 NPN (Dual) 40V 600mA 600mW Surface Mount 6-SMD
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 52 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 6-SMD, No Lead |
| Mounting Type | Surface Mount |
| Transistor Type | 2 NPN (Dual) |
| Operating Temperature | -65°C ~ 200°C (TJ) |
| Power - Max | 600mW |
| Current - Collector (Ic) (Max) | 600mA |
| Voltage - Collector Emitter Breakdown (Max) | 40V |
| Vce Saturation (Max) @ Ib, Ic | 900mV @ 30mA, 300mA |
| Current - Collector Cutoff (Max) | 10µA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 100 @ 150mA, 10V |
| Frequency - Transition | - |
| Supplier Device Package | 6-SMD |
| Grade | Military |
| Qualification | MIL-PRF-19500/495 |
