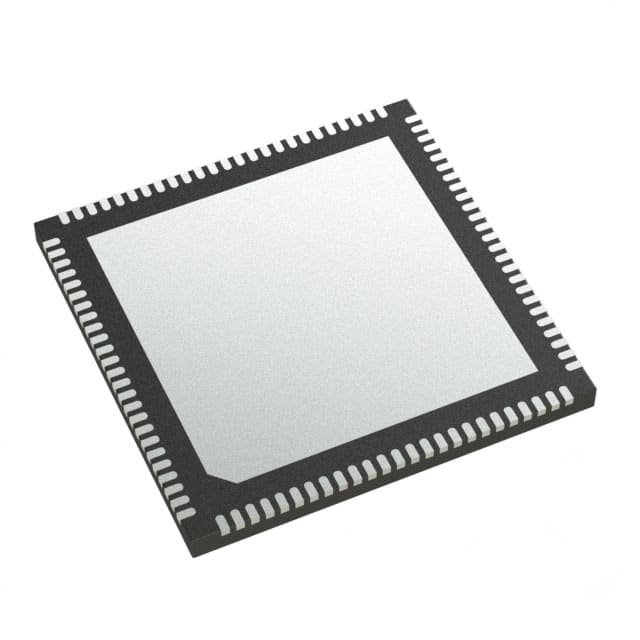

ZL30174LDG6
NETWORK SYNCHRONIZATION CLOCK TRManufacturer: Microchip Technology
Categories: Application Specific Clock/Timing
Quality Control: Learn More
Microchip Technology ZL30174LDG6 is a Network Synchronization Clock Translator designed for high-performance applications. This 3-output device supports a maximum frequency of 900MHz and features a robust input interface compatible with HCSL, LVCMOS, LVDS, and LVPECL signaling. Its output capabilities include CML and CMOS. The ZL30174LDG6 is engineered with an internal PLL and offers a versatile input-to-output ratio of 10:12. The component is housed in a 100-aQFN (10x10) package with an exposed pad, suitable for surface mounting. It operates within a temperature range of -40°C to 85°C. Key industries benefiting from this solution include automatic test equipment, where its precise timing and translation capabilities are critical.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 6 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 100-VQFN Dual Rows, Exposed Pad |
| Mounting Type | Surface Mount |
| Output | CML, CMOS |
| Frequency - Max | 900MHz |
| Input | HCSL, LVCMOS, LVDS, LVPECL |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | - |
| Main Purpose | Automatic Test Equipment |
| Ratio - Input:Output | 10:12 |
| Differential - Input:Output | Yes/Yes |
| Supplier Device Package | 100-aQFN (10x10) |
| PLL | Yes |
| Number of Circuits | 3 |
| Programmable | Not Verified |
